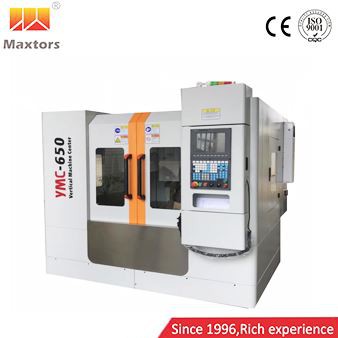

Economic Cheap CNC Machining Center

Economic pheej yig CNC Machining Center

Xa kev nug

Kev lag luam pheej yig CNC machining chaw tuaj yeem muab koj nrog tus nqi qis heev. Raws li cov cuab yeej siv tau zoo heev thiab ntau lub luag haujlwm, nws ua rau cov txheej txheem machining ntawm cov txheej txheem ntau dua los txo cov kev ua haujlwm nyuaj. Nws yog txawm peem rau nrog ib tug self-lubricating system thiab ib tug dej txias system kom tsis txhob muaj feem cuam tshuam thiab thermal deformation ntawm lub cuab tam. Lub tshuab no yog ib qho txiaj ntsig zoo rau ntau qhov chaw tsim khoom me me vim tias nws tsis xav tau kev nqis peev ntau dhau thiab tsis xav tau kev saib xyuas ntau.

Txij li thaum tsim cov khoom yuav tsum tau tshwj xeeb high precision, peb tau xaiv high-quality linear guides thiab spindles raws li lub zog tsav. Kev lag luam pheej yig CNC machining chaw tuaj yeem ua tiav kev tsim khoom ntawm ntau yam duab ntawm cov khoom thiab cov khoom siv. Nws muaj lub zog loj thiab cov qauv tsim kom muaj kev ruaj ntseg thaum lub sijhawm ua haujlwm. Built-in high-power spindle motor muab kev txiav quab yuam zoo thiab ua haujlwm ntev kom txo tau qhov tsis raug thiab cov nqi tsim khoom. Tsis tas li ntawd, peb tuaj yeem kho cov khoom tseem ceeb raws li koj qhov kev xav tau tiag tiag.

Specification

Cov khoom	Chav tsev	YMC-650V(BT30)	YMC-650V(BT40)
Rooj
Table Size	mm	620×420	620×420
Max.Loading	KG	600	600
T-Qhov	mm	3-18×135	3-18×135
Mus ncig
X/Y/Z Travel	mm	650/400/400	650/400/400
Qhov deb ntawm Spindle qhov ntswg mus rau lub rooj	mm	100~500	100~500
Spindle
Spindle taper		7/24 Taper No.30	7/24 Taper No.40
Max.Spindle ceev	rpm ua	10000	8000
Spindle lub cev muaj zog	KW	3.7/5.5	5.5/7.5
Pub
Rapid Feedrate (X/Y/Z)	m/min	30/30/30	30/30/30
Txiav Feedrate (X / Y / Z)	m/min	2010/10/10	2010/10/10
ATC (Kev xaiv)
ATC Hom		Armless/Arm	Armless/Arm
Tsis muaj cov cuab yeej	pcs	12/16/20/24	12/16/20/24
Cov Cuab Yeej Loj (Cov Cuab Yeej Tag Nrho)	mm	Φ50/260	Φ80/300
Max.Tool Nyhav	KG	3	8
Qhov tseeb
Positioning raug	mm	±0.008/300	±0.008/300
Re-Positioning raug	mm	±0.005/300	±0.005/300
Lwm tus
Hneev taw	mm	2400×2000	2400×2000
Tshuab Qhov siab	mm	2500	2500
G.W.	KG	4000	4000
