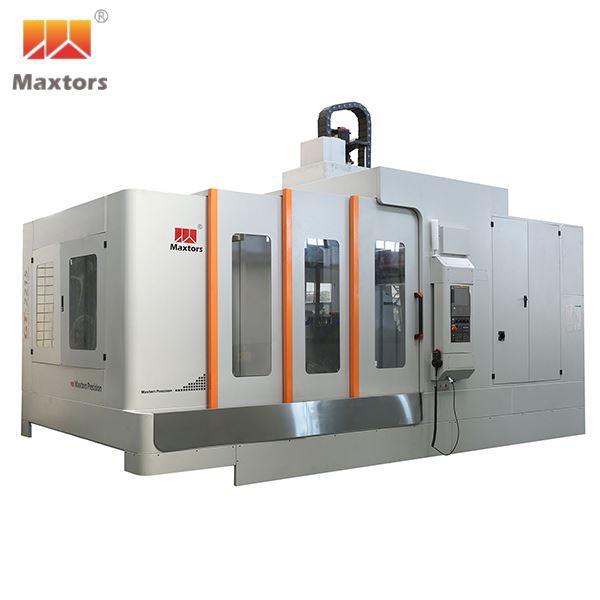

Portal Machining Center

Portal Machining Center tsuas yog siv cov cuab yeej zoo xws li gantry milling tshuab rau kev ua haujlwm. Lub tshuab gantry milling yog lub tshuab milling nrog ib lub portal ncej thiab kab rov tav ntev txaj.

Xa kev nug

Product Description

Portal machining center yog cov cuab yeej siv tshuab machining, thiab nws tsuas yog siv cov cuab yeej zoo xws li gantry milling tshuab rau kev ua haujlwm ntxhib lossis ua tiav ntawm qhov chaw. Lub tshuab milling ntawm cov cuab yeej no yog gantry, kab rov tav ntev txaj, thiab nws yog tsim los ntawm gantry, ib lub txaj txaj thiab lub tshuab hluav taws xob tswj. Nws muaj cov yam ntxwv ntawm kev ua haujlwm siab, kev ua haujlwm siab, kev ua haujlwm yooj yim, cov qauv yooj yim thiab kev ua haujlwm zoo, uas tuaj yeem pab ntau cov tuam txhab lag luam uas tsis tshua muaj nqis peev los tsim ntau qhov chaw zoo.

Lub tshuab integrates ntau yam machining kev khiav hauj lwm rau hauv ib tug machining chaw yog li nws yog ntau automated tshaj li ib txwm machining txoj kev. Ib yam li ntawd, txoj kev machining no txo cov tib neeg kev koom tes los txo cov tib neeg ua rau qhov tsis raug. Lub tshuab tuaj yeem pab cov neeg siv txhim kho kev lag luam thiab txo cov nqi zog. Portal machining chaw xa khoom tshwj xeeb thiab kev ua tau zoo, thiab cov khoom peb tsim tau raug kuaj nruj, yog li koj tuaj yeem xaiv nrog kev ntseeg siab.

Khoom Specification

Yam khoom	Chav tsev	TSI -2215
Mus ncig
X Axis Travel	mm	2200
Y Axis Travel	mm	1500
Z Axis Ncig Tebchaws	mm	800
Spindle Nose rau Rooj	mm	150-950
Qhov nrug nruab nrab ntawm Kem	mm	1580
Lub rooj ua haujlwm
Worktable Size	mm	2200×1480
Max.Loading ntawm Rooj	KG	6000
Spindle
Spindle Ceev	rpm ua	15000
Spindle Taper		HSK-A63
Feedrate
XYZ Rapid Feed	m/min	15/15/7.5
Txiav Feed	m/min	7.5
ATC (OPT.)
Muaj peev xwm		24T
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Lwm tus
Hneev taw	mm	6000×3000
Tshuab Qhov siab	mm	3300
Tshuab hnyav	KG	18000
CNC maub los		Siemens 828D

Standard Configuration (SIEMENS CNC Controller)

Siemens 828D CNC Controller System

HSK-A63 15000RPM Spindle

XYZ Axis Servo Tsav

Dej Tank Cooling Device

Auto.Lubricating Device

Sab nrauv tiv thaiv npog

Spindle Blowing Device

Spindle Oil Txias

Hluav taws xob tswj txee

Hloov pauv

AC rau hluav taws xob txee

Phau Ntawv Qhia Pulse Generator (MPG)

Lub teeb ua haujlwm

Peb-xim teeb ceeb toom

LCD Saib

Tool Box

Leveling pads

Phau ntawv ua haujlwm

Cov Cheebtsam

Tsis muaj.	cov khoom	Hom
1	CNC maub los	Siemens
2	X/Y/Z Axis Tsav	Siemens (7.2 / 5.2 / 5.2KW)
3	Ballscrew	HIWIN / PMI (Φ63 / Φ50 / Φ50mm)
4	Linear Guideway	HIWIN/PMI (55/55/45mm, Z Axis 4 Rails)
5	Spindle	KENTURN/ROYAL
6	Spindle Oil Txias	TNP/RUCOL
7	Lub tshuab nqus dej	Luikar
8	Servo coupling	R plus W/KTR
9	Lubrication System	HERG
10	Hluav taws xob System tseem ceeb	Schneider
11	AC rau Hluav taws xob txee	RUCOL / dawb
12	MPG	TOSOKU / SIEMENS
13	Hloov pauv	JUHVER/SUENNLIANG
14	Outer Guard Cover	MAXTORS

Kev xaiv
	TSIS MUAJ.	COMPONENT	KHOOM	LUB TSEV	Nco tseg
	1	Automatic Tool Changer	SANJET/AIMACH	Taiwan / Suav
	2	Automatic Tool Measuring System	BLUM/MARPOSS/Maxtors	Lub teb chaws Yelemees / Ltalis / Suav
	3	Automatic Workpieces Ntsuas System	BLUM	Lub teb chaws Yelemees
