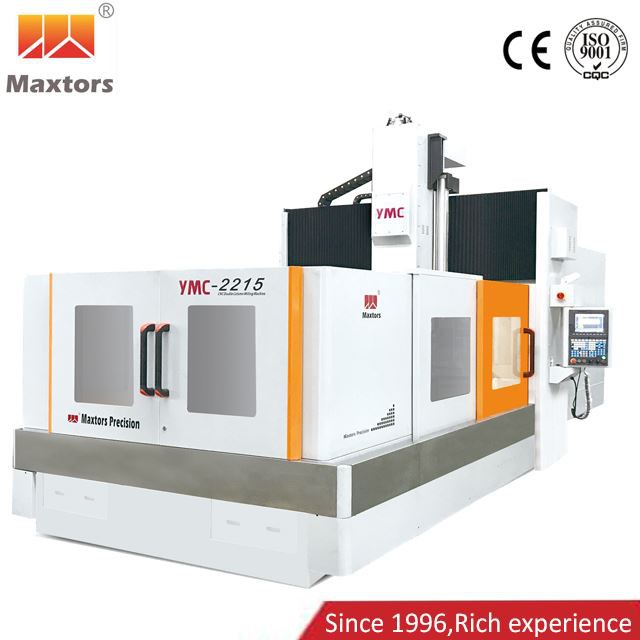

Gantry Machining Center

MODEL YMC-2215
Ob chav kab ntsug hom CNC Milling Tshuab Center

MODEL YMC-2215

Ob chav kab ntsug hom CNC Milling Tshuab Center

XYZ Axis Linear Guide rails

Z Axis 4 daim kab tawm txoj kev xaiv rau kev txiav hnyav

Khoom Specification

Yam khoom	Chav tsev	YMC-2215
Lub rooj ua haujlwm
Worktable Size	mm	2200×1480
Max.Loading ntawm Rooj	KG	5000
Mus ncig
X Axis Travel	mm	2200
Y Axis Travel	mm	1500
Z Axis Ncig Tebchaws	mm	800
Spindle Nose rau Rooj	mm	150-950
Qhov nrug nruab nrab ntawm Kem	mm	1580
Pub System
XYZ Rapid Feed	m/min	15/15/7.5
Txiav Feed	m/min	6
ATC/Tool Magazine (Rau Center)
Tool Capacity		BT50/24
Max.Tool Dia./Length	mm	Φ125/300
Tool Hloov Txoj Kev		Pneumatic
Max.Tool Luj	KG	18
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Spindle
Spindle Ceev	rpm ua	6000
Spindle Taper		BT50
Spindle Tsav	KW	15/18.5
Lwm tus
Huab cua yuav tsum	kg/c ㎡	Ntau dua lossis sib npaug 6
Cua Presuure Flux Rate	m³/min	Ntau dua lossis sib npaug rau 0.5
Hneev taw	mm	6000×2580
Tshuab Qhov siab	mm	3200
Tshuab hnyav	KG	18000
CNC maub los		FANUC-0iMF
