Milling Machining Center

Vertical hom cnc milling machining chaw thiab ob kem hom cnc milling tshuab chaw ob leeg muaj

Vertical hom cnc milling machining chaw thiab ob kem hom cnc milling tshuab chaw ob leeg muaj

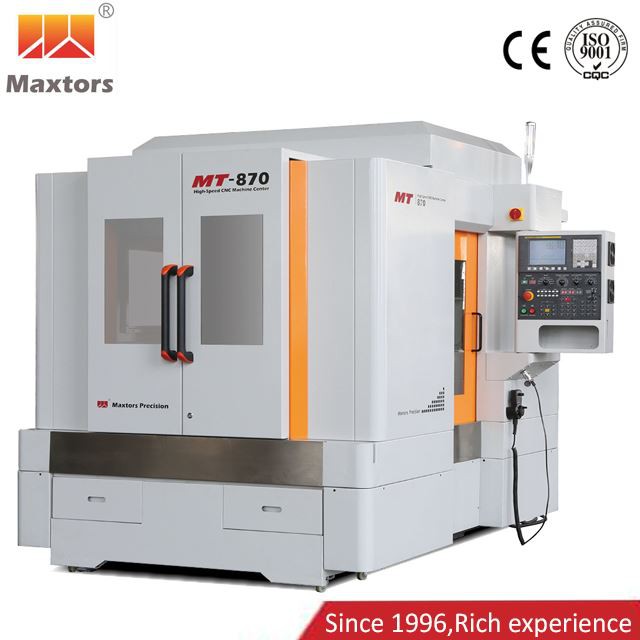

MT-870 Nws yog gantry cnc tshuab chaw. Tsis siv neeg lub cuab yeej hloov pauv tuaj yeem nruab raws li kev ua tiav.

ATC Muaj 12/16 Chaw Nres Armless hom thiab 16 Chaw Nres Nkoj Hom / disc hom tuaj yeem ntsia tau

Kuj tseem tuaj yeem ntxiv 4^thaxis roary rooj los yog 4/5^thqaij thiab cov lus teb kom paub txog 4 axis lossis 5 axis muaj nuj nqi.

Khoom Specification

Yam khoom	Chav tsev	MT -870
Mus ncig
X Axis Travel	mm	800
Y Axis Travel	mm	700
Z Axis Ncig Tebchaws	mm	400
Spindle Nose rau Rooj	mm	150-550
Qhov nrug nruab nrab ntawm Kem	mm	850
Lub rooj ua haujlwm
Worktable Size	mm	800×700
Max.Loading ntawm Rooj	KG	600
Pub System
XYZ Rapid Feed	m/min	10/10/7.5
Txiav Feed	m/min	6
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Spindle
Spindle Ceev	rpm ua	15000
Spindle Taper		HSK-A63
Lwm tus
Hneev taw	mm	2600×2500
Tshuab Qhov siab	mm	2600
Tshuab hnyav	KG	5000
CNC maub los		FANUC
