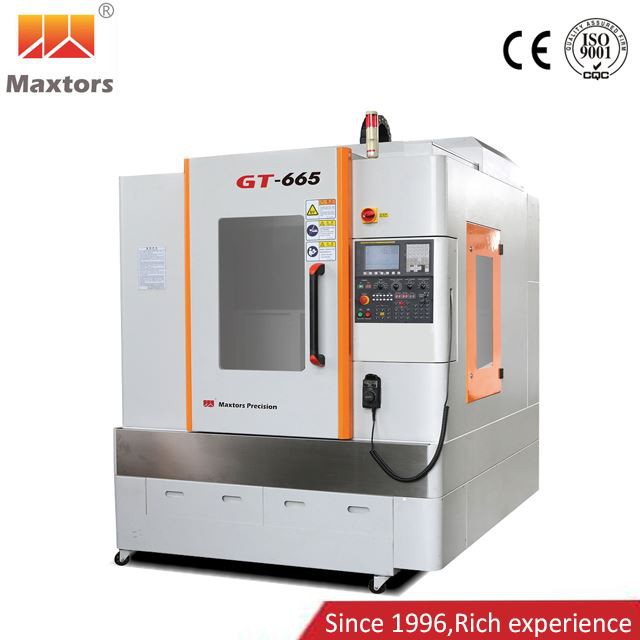

Kev kub ceev CNC Milling Tshuab

Ob chav kab hom

GT-665,GT-870,GT-1311H,GT-1713,GT-2215,GT-2616



Nrog Linear Guide Rails hom

Yuav ua tau nrog FANUC, Mitsubishi, Siemens, FOGOR, Heidenhain, TAIWAN LNC, SYNTEC cnc maub los

3 axis, 4 axis, 5 axis yeem



Kev kub ceev cnc milling tshuab yog tsim rau tsim cov khoom hlau thiab qhov chaw hauv txhua daim duab. Nws yog dav siv los tsim cov khoom siv hluav taws xob, cov cuab yeej kho mob thiab txhua yam kev txhaj tshuaj pwm, tshuab pwm, diecasting pwm, tsheb LED pwm, cov khoom ua si pwm thiab cov pwm meej thiab lwm yam. Nrog kev kub ceev spindle nws yog qhov zoo tshaj plaws rau siab precision. kev ua pwm.



Khoom Specification

Yam khoom	Chav tsev	TSI -665	TSI -870	TSI -1190	GT-1311H	TSI -1612	TSI -1713	TSI -2215	TSI -2616
Mus ncig
X Axis Travel	mm	650	800	1100	1300	1600	1700	2200	2600
Y Axis Travel	mm	600	700	900	1100	1200	1300	1500	1580
Z Axis Ncig Tebchaws	mm	260	400	600	600	580	700	800	800
Spindle Nose rau Rooj	mm	130-390	150-550	150-750	150-750	240-820	250-950	150-950	350-1150
Qhov nrug nruab nrab ntawm Kem	mm	700	850	1060	1200	1350	1350	1580	1620
Lub rooj ua haujlwm
Worktable Size	mm	600×600	800×700	1200×900	1300×1000	1600×1200	1700×1200	2200×1480	2600×1480
Max.Loading ntawm Rooj	KG	300	600	1000	2000	2000	3000	6000	8000
Pub System
XYZ Rapid Feed	m/min	7.5/7.5/7.5	10/10/7.5	20/15/10	15/15/7.5	15/15/7.5	15/15/7.5	15/15/7.5	15/15/7.5
Txiav Feed	m/min	6	6	10	7.5	7.5	7.5	7.5	7.5
Qhov tseeb
Positioning raug	mm	±0.008/300	±0.008/300	±0.008/300	±0.008/300	±0.008/300	±0.008/300	±0.008/300	±0.008/300
Re-Positioning raug	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Spindle
Spindle Ceev	rpm ua	30000	15000	15000	15000	15000	15000	15000	15000
Spindle Taper		BT30	HSK-A63	HSK-A63	HSK-A63	HSK-A63	HSK-A63	HSK-A63	HSK-A63
Lwm tus
Hneev taw	mm	2000×1700	2600×2500	3100×2550	3800×2550	4300×2600	5000×2700	6000×3000	6800×3000
Tshuab Qhov siab	mm	2300	2600	2900	3000	3000	3200	3300	3500
Tshuab hnyav	KG	3200	5000	8000	10500	11000	16000	18000	23500
CNC maub los		FANUC



TxujKev teeb tsa

● Ob Chav Kem Hom

● Precision High Speed ​​Spindle

● Spindle Roj Chiller

● Spindle coolant nozzle system

● XYZ Axis Linear rails

● XYZ Axis Servo Tsav

● Telescopic npog rau 3 axis

● Tag Nrho Txhuam Txhuam Txhuam Hniav

● Cua Txias rau Hluav Taws Xob

● Cov ntaub ntawv hloov pauv interface

● Tsis siv neeg lubrication system

● Txiav Coolant system

● LED ua haujlwm teeb

● Xaus ntawm qhov kev pab cuam lub teeb

● Portable Electronic handwheel (MPG)

● Lub thawv cuab yeej

● Leveling bolts thiab blocks

● Txiav cua tshuab tshuab

● CNC Phau Ntawv Qhia & Kev Siv Ua Haujlwm

● Ntsia hlau hom Chip Conveyor system

● Lub qhov rooj ruaj ntseg

● Transformer (raws li qhov hluav taws xob hauv zos)

● FANUC CNC maub los



Yeem Configuration

○Sib txawv Speed ​​Spindle

○Coolant Los ntawm Spindle (CTS)

○ATC/Tool Magazine system

○Chain hom Chip Conveyor system

○Lub 4th axis teb lub rooj

○5th axis Tilting & Rotary rooj

○5th axis axis Bi-rotary milling taub hau

○Linear Scale

○Auto.Tool Measuring system

○Auto.Workpiece Ntsuas qhov system

○CE Mark

○Tshuab Kem Heighten

○LNC / Syntec CNC maub los

○Mitsubishi / Siemens / Heidenhain CNC maub los

○Lwm Cov Kev Xaiv raws li tau thov



Tom qab-muag Service Muab:

Cov khoom seem dawb, kev txhawb nqa online, Kev txhawb nqa Video





Tom qab Warranty Service:

Video technical support, Kev them nyiaj yug online



Ntim Cov Lus Qhia

1.Txhua zaj duab xis ntim tshuab;
2.Anti-kev sib tsoo pob ntug;
3.Fumigation-free plywood ntoo thawv nrog hlau khi txoj siv.

Peb yuav muab cov txheej txheem export pob lossis raws li koj cov kev xav tau pob.

Ib xyoos Thaum lub sijhawm lav, yog tias koj muaj qhov tawg vim qhov teeb meem zoo, peb yuav muab rau koj dawb los ntawm kev nthuav qhia. Tawm ntawm lub sijhawm lav, yog tias koj muaj lus nug, koj tuaj yeem tiv tauj peb, peb yuav muab peb cov kev pabcuam zoo tshaj plaws rau koj li niaj zaus.
