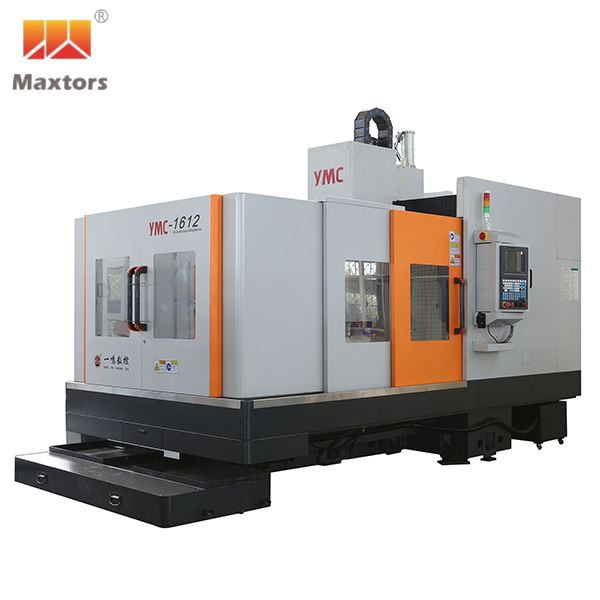

Ob Chav Kem Machining Center

Xa kev nug

Product Description

Ob Chav Kem Machining Center tsuas yog yuav tsum siv lub tshuab ntsug CNC milling rau kev ua thiab ntau lawm. Vertical CNC milling tshuab yog ua los ntawm cov khoom zoo raw khoom thiab muaj kev hnav zoo. Lub super loj kem yog multi-processed thiab kev nyuaj siab guarantees tias nws yuav tsis deformed rau lub sij hawm ntev. Nws tsuas yog siv peb-dimensional variable txoj kab uas hla tsim los xyuas kom meej lub stability thiab kev cia siab ntawm lub cev. Double Column Machining Center tuaj yeem tsim ntau yam qauv, xws li ntsug, ob tog ncej, gantry, kab rov tav thiab lwm yam.

Khoom Specification

Yam khoom	Chav tsev	YMC-1612
Lub rooj ua haujlwm
Worktable Size	mm	1600×1200
Max.Loading ntawm Rooj	KG	2000
Mus ncig
X Axis Travel	mm	1600
Y Axis Travel	mm	1200
Z Axis Ncig Tebchaws	mm	550
Spindle Nose rau Rooj	mm	150-700
Qhov nrug nruab nrab ntawm Kem	mm	1380
Pub System
XYZ Rapid Feed	m/min	15/15/7.5
Txiav Feed	m/min	6
ATC/Tool Magazine (Rau Center)
Tool Capacity		BT40/24
Max.Tool Dia./Length	mm	Φ80/260
Tool Hloov Txoj Kev		Pneumatic
Max.Tool Nyhav	KG	8
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Spindle
Spindle Ceev	rpm ua	10000
Spindle Taper		BT40
Spindle Tsav	KW	7.5/11
Lwm tus
Huab cua yuav tsum	kg/c ㎡	Ntau dua lossis sib npaug 6
Cua Presuure Flux Rate	m³/min	Ntau dua lossis sib npaug rau 0.5
Hneev taw	mm	4300×2400
Tshuab Qhov siab	mm	3000
Tshuab hnyav	KG	10500
CNC maub los		FANUC-0iMF
