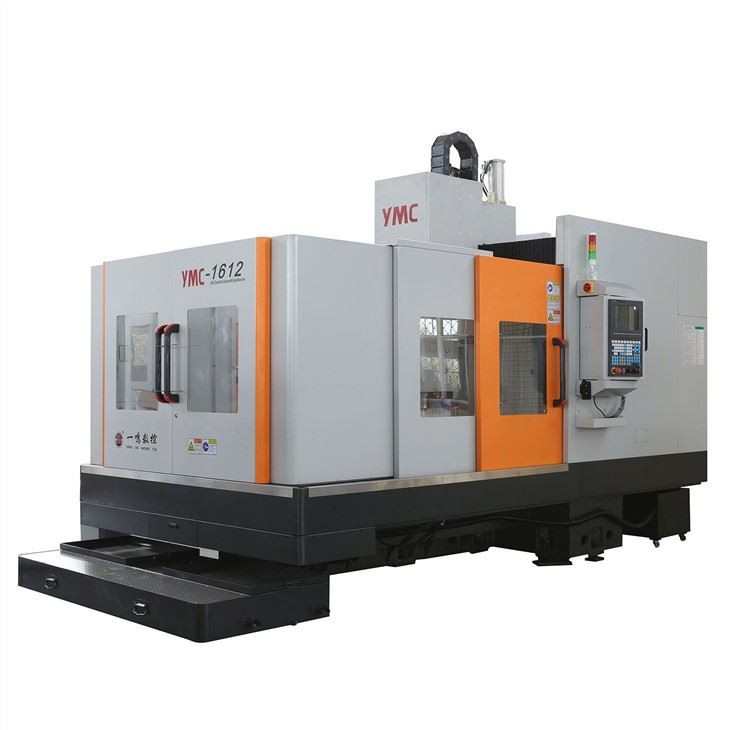

Portal CNC Milling Tshuab Center

Lub Portal CNC Milling Tshuab Center yog ib qho kev txiav-ntug ntawm cov cuab yeej uas muaj ntau yam tseem ceeb thiab qhov zoo. Firstly, nws muaj unrivaled precision thiab raug, ua tsaug rau nws advanced tswj system thiab high-zoo Cheebtsam. Qhov no ua rau nws zoo tagnrho rau ntau yam kev siv, los ntawm kev lag luam aerospace thiab kev tiv thaiv kev lag luam uas yuav tsum muaj kev zam nruj rau cov tuam txhab kho mob thiab kho hniav uas xav tau cov khoom sib txawv.



Thib ob, Portal CNC Milling Tshuab Chaw yog qhov muaj ntau yam zoo kawg, nrog rau kev muaj peev xwm ua tau ntau yam ntawm milling, drilling, thiab tho txawv. Qhov no ua rau nws yog ib qho kev daws teeb meem zoo tshaj plaws rau cov lag luam uas xav tau los tsim cov khoom sib txuam, nrog rau cov uas xav tau cov khoom ntim ntau.



Thirdly, lub tshuab no yog incredibly neeg siv-phooj ywg, nrog ib tug intuitive interface uas ua rau nws yooj yim rau kev pab cuam thiab khiav lag luam, txawm rau cov neeg uas tsis muaj kev txawj ntse. Qhov no txhais tau tias nws tuaj yeem siv los ntawm cov neeg ua haujlwm ntawm txhua qib kev txawj, los ntawm novice mus rau cov kws tshaj lij.



Zuag qhia tag nrho, CNC Milling Tshuab Center yog lub tshuab muaj zog thiab hloov tau yooj yim uas tuaj yeem muab cov txiaj ntsig zoo rau kev lag luam hauv ntau qhov kev lag luam. Txawm hais tias koj xav tau los tsim cov khoom sib xyaw nrog kev ua siab ntev los yog kev ua haujlwm siab, lub tshuab no tuaj yeem pab koj coj koj txoj haujlwm mus rau qib tom ntej.





Cov yam ntxwv tseem ceeb ntawm kev ua haujlwm:

1.Lub fuselage thiab lub ntsiab Cheebtsam yog siab zog cam khwb cia hlau, microstructure stability, xyuas kom meej stability ntawm lub tshuab cuab yeej siv mus ntev.

2.Cov kab hauv qab ntawm A hom choj hom qauv, ua ke nrog lub thawv loj hauv paus, zoo heev txo cov kev co ntawm lub tshuab ntawm hnyav txiav.

3.Qhov ua ntej nro precision pob ntsia hlau tsav

4.Qhov kev kub ceev, siab precision, siab rigidity spindle chav tsev

5.Kev tsim cov roj-dej sib cais

6.Qhov sib cuam tshuam tsis siv neeg lubrication

7.Automatic scraping riam system



Specification

Yam khoom	Chav tsev	YMC-1612
Lub rooj ua haujlwm
Worktable Size	mm	1600×1200
Max.Loading ntawm Rooj	KG	2000
Mus ncig
X Axis Travel	mm	1600
Y Axis Travel	mm	1200
Z Axis Ncig Tebchaws	mm	550
Spindle Nose rau Rooj	mm	150-700
Qhov nrug nruab nrab ntawm Kem	mm	1380
Pub System
XYZ Rapid Feed	m/min	15/15/7.5
Txiav Feed	m/min	6
ATC/Tool Magazine (Rau Center)
Tool Capacity		BT40/24
Max.Tool Dia./Length	mm	Φ80/260
Tool Hloov Txoj Kev		Pneumatic
Max.Tool Nyhav	KG	8
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Spindle
Spindle Ceev	rpm ua	10000
Spindle Taper		BT40
Spindle Tsav	KW	7.5/11
Lwm tus
Huab cua yuav tsum	kg/c ㎡	Ntau dua lossis sib npaug 6
Cua Presuure Flux Rate	m³/min	Ntau dua lossis sib npaug rau 0.5
Hneev taw	mm	4300×2400
Tshuab Qhov siab	mm	3000
Tshuab hnyav	KG	10500
CNC maub los		FANUC-0iMF





Peb Pab Pawg:

Peb yog ib pab neeg uas muaj kev paub dhau los thiab cov kws tshaj lij uas yog cov kws tshaj lij hauv kev ua haujlwm precision los ntawm cov txheej txheem tshawb fawb. Cov kws tshaj lij cov txuj ci sib sau ua ke pab pawg muaj zog thiab muaj tswv yim ntawm kev tsim, kev tshawb fawb thiab kev tsim kho, uas tsim peb cov khoom siv zog thiab kev sib tw. Thiab peb lub tuam txhab tab tom txhim kho sai thiab muab kev pabcuam tshwj xeeb rau txhua tus neeg siv khoom.













Cov yam ntxwv ua haujlwm

1. Lub hauv paus qhov chaw yog ua los ntawm high-strength cam khwb cia hlau, uas yog ib txwm muaj hnub nyoog los xyuas kom meej stability ntawm raug;



2. X thiab Y kev taw qhia rails siv hnyav linear guide rails; Z kev taw qhia rails siv lub kaum sab xis zawv zawg qhia rails; lub hardened sib tsoo daim ntawv qhia rails phim cov yas-coated qhia rails, muaj zog bearing muaj peev xwm thiab zoo poob siab absorbing;



3. Z tshuav nyiaj li cas txais cov nitrogen tshuav nyiaj li cas lub tog raj kheej kom ntseeg tau tias lub qhov ntswg du;



1. Thaum twg peb tuaj yeem npaj cov khoom xa tuaj?



Peb feem ntau npaj cov khoom xa tuaj hauv 45 hnub tom qab tau txais qhov tso nyiaj,



Tab sis kev cai tshuab yuav tsum muaj ntau tshaj 45 hnub.



2. Koj tuaj yeem ua li cas yog tias muaj teeb meem nrog kuv lub tshuab?



1) Yog tias koj lub tshuab nyob rau hauv warranty, peb tuaj yeem xa koj cov khoom dawb.



2) Peb tuaj yeem xa peb cov engineers los kho koj lub tshuab



3. Koj puas muab kev cob qhia cov cuab yeej ua haujlwm?



Teb: Yog. Cov kws tshaj lij engineers tuaj yeem xa mus rau qhov chaw ua haujlwm rau kev teeb tsa cov khoom siv, commissioning thiab kev cob qhia ua haujlwm. Tag nrho peb cov engineers muaj daim ntawv hla tebchaws.
