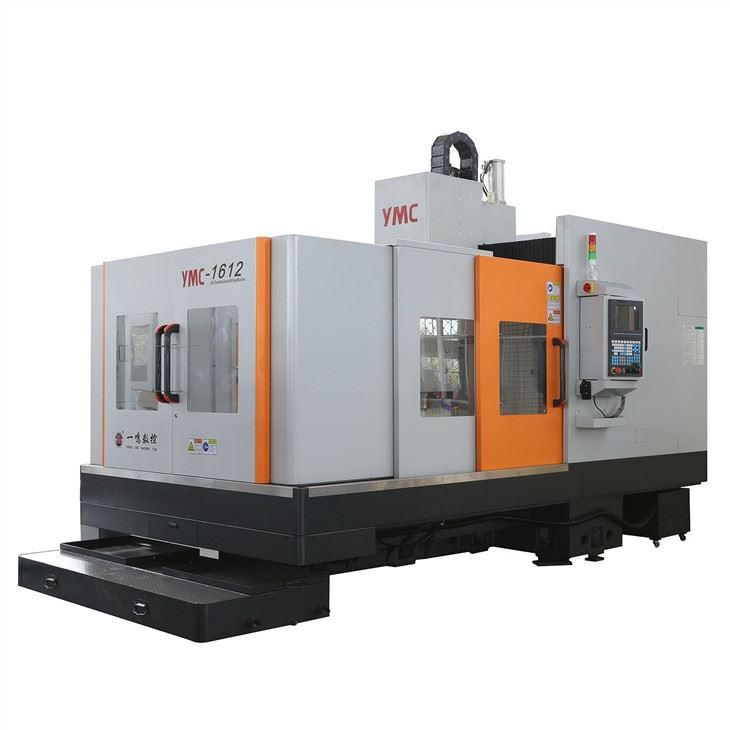

CNC Milling Tshuab Center Vertical Machining Center

CNC Milling Tshuab Center Vertical Machining Center

portal cnc machining chaw
Muab ob npaug rau kab hom tshuab lub cev
BT40 10000RPM lossis BT50 6000RPM Spindle tuaj yeem xaiv

Xa kev nug

portal cnc machining chaw

Nrog ob kem hom Tshuab lub cev.

Specification

Yam khoom Chav tsev YMC-1612
Lub rooj ua haujlwm
Worktable Size mm 1600×1200
Max.Loading ntawm Rooj KG 2000
Mus ncig
X Axis Travel mm 1600
Y Axis Travel mm 1200
Z Axis Ncig Tebchaws mm 550
Spindle Nose rau Rooj mm 150-700
Qhov nrug nruab nrab ntawm Kem mm 1380
Pub System
XYZ Rapid Feed m/min 15/15/7.5
Txiav Feed m/min 6
ATC/Tool Magazine (Rau Center)
Tool Capacity   BT40/24
Max.Tool Dia./Length mm Φ80/260
Tool Hloov Txoj Kev   Pneumatic
Max.Tool Nyhav KG 8
Qhov tseeb
Positioning raug mm ±0.008/300
Re-Positioning raug mm ±0.005/300
Spindle
Spindle Ceev rpm ua 10000
Spindle Taper   BT40
Spindle Tsav KW 7.5/11
Lwm tus
Huab cua yuav tsum kg/c ㎡ Ntau dua lossis sib npaug 6
Cua Presuure Flux Rate m³/min Ntau dua lossis sib npaug rau 0.5
Hneev taw mm 4300×2400
Tshuab Qhov siab mm 3000
Tshuab hnyav KG 10500
CNC maub los   FANUC-0iMF

8-1

8-2

3 About Us


Peb Pab Pawg:

Peb yog ib pab neeg uas muaj kev paub dhau los thiab cov kws tshaj lij uas yog cov kws tshaj lij hauv kev ua haujlwm precision los ntawm cov txheej txheem tshawb fawb. Cov kws tshaj lij cov txuj ci sib sau ua ke pab pawg muaj zog thiab muaj tswv yim ntawm kev tsim, kev tshawb fawb thiab kev tsim kho, uas tsim peb cov khoom siv zog thiab kev sib tw. Thiab peb lub tuam txhab tab tom txhim kho sai thiab muab kev pabcuam tshwj xeeb rau txhua tus neeg siv khoom.

4 Exhibition and Customers

5. Honors & Certificate

6 Why Choose Us

13 Assembly & Commissioning

9 Partner Brand

12 Production Equipments

10 Package & Shipment

Peb cov khoom muaj tus kheej zoo thiab ua tau raws li cov kev xav tau sib txawv ntawm txhua tus neeg siv khoom, peb tsis tu ncua ua kom zoo thiab tsim peb lub tshuab tsib-axis cuab yeej chaw pwm txiav, dual-spindle CNC lathes, thiab electro-spindle CNC engraving tshuab. Peb hais kom xa khoom raws sijhawm nrog cov khoom zoo thiab muaj nuj nqis, thiab ua tiav kev txhim kho yeej-yeej nrog cov neeg siv khoom. Kev tswj hwm kev lag luam nruj txhais tau tias ua raws li cov cai thiab kev tswj hwm kev lag luam raws li kev tsim kho thiab cov txheej txheem. Hauv kev sib tw ua lag luam hnyav, tau txais kev sib koom ua lag luam ntau dua, tsim kom muaj kev lag luam duab, thiab txuas ntxiv txhim kho lub zog ntawm lub tuam txhab yog cov yuam sij rau kev loj hlob sai ntawm peb lub tuam txhab. Peb hais kom ua tus kws tshaj lij, ua haujlwm tau zoo, thev naus laus zis tshiab, thiab cog lus los pab cov neeg siv khoom. Nyob rau hauv lub neej yav tom ntej, peb yuav mus txuas ntxiv mus nrhiav zoo meej thiab muab kev pab cuam.





Cim npe nrov: cnc milling tshuab center ntsug machining chaw
