24000 Rpm CNC Engraving Tshuab

24000 rpm CNC Engraving tshuab
Kev kub ceev CNC Milling Engraving Tshuab
Haum rau steel hlau pwm ua

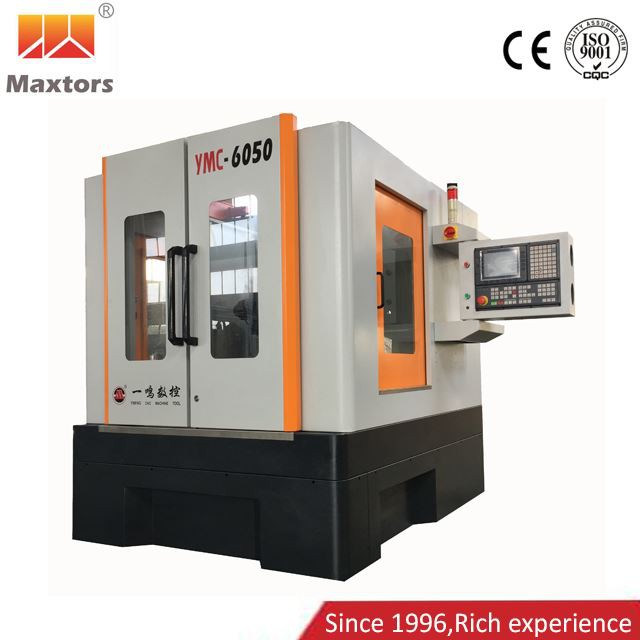

MAXTORS YMC -6050 24000 rpm CNC Engraving Tshuab

Kev kub ceev high precision CNC Engraving milling tshuab zoo tshaj plaws rau hlau steel pwm ua.

Lub tshuab no YMC-6050 Cov khoom tseem ceeb txais cov npe nrov zoo.

Kev Qhia: TAIWAN HIWN / PMI

Pob ntsia hlau: TAIWAN HIWIN / PMI

3 Axis Servo system: Japanese YASAKWA

Controller: TAIWAN LNC, SYNTEC lossis Nyiv FANUC lossis Lub Tebchaws Yelemees SIEMENS

24000 rpm CNC Engraving Tshuab Specification

Cov khoom	Chav tsev	YMC-6050
Mus ncig
XYZ Axis Travel	mm	500×600×230
Qhov deb ntawm rooj saum npoo mus rau Spindle Nose (Appr.)	mm	360
Qhov nrug nruab nrab ntawm Kab (Appr.)	mm	660
WorkTable
WorkTable Length	mm	600
Worktable Dav	mm	585
T-Qhov Loj	mm	5-14×108
Loading on Table	KG	300
Spindle
Max.Spindle Range	rpm ua	24000
Spindle Tsav	KW	4
Spindle Hom		ER 25
Feedrate
Rapid feedrate (X / Y / Z)	m/min	7.5/7.5/7.5
Txiav feedrate	m/min	6
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Lwm Yam Khoom
Lub zog xav tau	KVA	10
Input voltage	Volt	220V~440V
Tshuab Footprint (L × W)	mm	1950×1800
Tshuab Qhov siab	mm	2200
Qhov hnyav	T	2.3
CNC maub los		NP528
