Kev kub ceev spindle CNC engraving tshuab

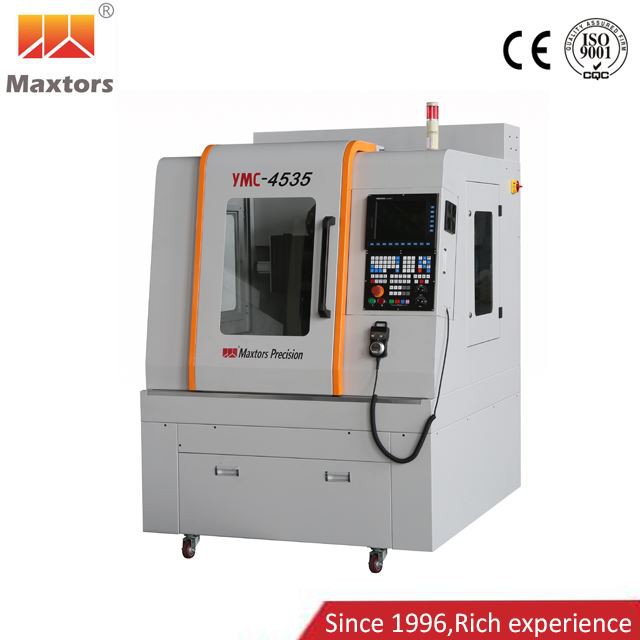

Maxtors precision 3 axis Kev kub ceev spindle CNC Engraving tshuab

Txuj nrog 1.5kw ER16 30000RPM Kev kub ceev ntxaiv, zoo tshaj plaws rau qhov me me lossis pwm tiav / zoo machining.

YMC-4535 Qauv nws yog tus qauv nrov thiab muag kub.

XYZ Axis mus ncig: 350x450x150mm

ER16 30000RPM Kev kub ceev hluav taws xob ntxaiv

LNC 528 TAIWAN maub los

Kev kub ceev spindle CNC Engraving tshuab Specification

Cov khoom	Chav tsev	YMC-4535
Mus ncig
X/Y/Z Travel	mm	350×450×150
Spindle Nose rau lub rooj (Appr.)	mm	300
Qhov nrug nruab nrab ntawm kab (Appr.)	mm	500
Rooj
Table Size	mm	500 × 385
T-Qhov	mm	5-14×74
Max.Loading	KG	150
Qhov nrug nruab nrab ntawm Kem	mm	500
Spindle
Max.Spindle Ceev	rpm ua	30000
Spindle lub cev muaj zog	KW	1.5
Spindle Taper		ER 16
Feedrate
Rapid feedrate (X / Y / Z)	m/min	7.5/7.5/7.5
Txiav feedrate	m/min	6
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Lwm Yam Khoom
Lub zog xav tau	KVA	6
Input voltage	Volt	220V~440V
Tshuab Footprint (L × W)	mm	1600×1600
Tshuab Qhov siab	mm	1900
Qhov hnyav	T	1.5
CNC maub los		NP528
