CNC Machining Center

● Vertical Hom
● Siv tsav BT40 8000rpm Spindle
● Roj Cooler system
● 3 axis precision ballscrew

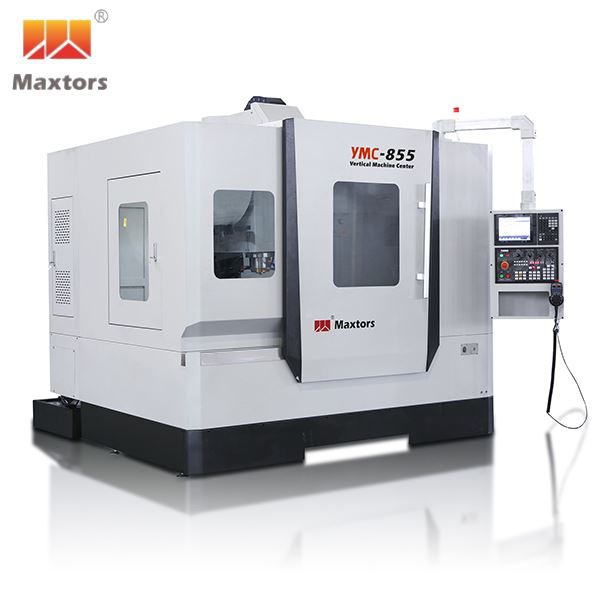

Vertical hom CNC Milling Tshuab Center

Khoom Specification

Cov khoom	Chav tsev	YMC-855
Table Size	mm	1000×550
Max.Loading	KG	500
T-Qhov	mm	5-18×120
X/Y/Z Travel	mm	800/550/550
Spindle qhov ntswg rau lub rooj	mm	140~690
Spindle taper		7/24 Taper No.40
Spindle ceev	rpm ua	8000
ATC Capacity (Kev xaiv)	T	24
X/Y/Z Axis Max. Rapid Feedrate (G00)	m/min	30/30/20
X/Y/Z Axis Max. Txiav Feedrate (G01)	m/min	8
Lub zog nkag	V	380
Ntau zaus	Hz	50
Tag nrho cov hluav taws xob muaj peev xwm	KVA	20
G.W.	KG	5000
XYZ Axis Control daws teeb meem	mm	0.001
CNC maub los		FANUC / Mitsubishi / Siemens

Standard Configuration

● Vertical Hom

● Siv tsav BT40 8000rpm Spindle

● Roj Cooler system

● 3 axis precision ballscrew

● Linear hom txoj kev ntawm XYZ Axis

● Servo Tsav ntawm XYZ Axis

● Txias qhov system rau hluav taws xob txee

● Auto. Lubrication system

● LED Teeb rau thaj chaw ua haujlwm

● Tes pulse generator

● Txiav cua tshuab tshuab

● Phau ntawv rau tus neeg teb xov tooj

● Tswj phau ntawv

● Chip flushing system

● Txiav kua Tank

● Mitsubishi / Siemens / FANUC CNC Controller

Cov Cheebtsam

Tsis muaj.	cov khoom	Hom
1	CNC maub los	FANUC / Mitsubishi / Siemens
2	Spindle Tsav	FANUC / Mitsubishi / Siemens
3	X/Y/Z Axis Tsav	FANUC / Mitsubishi / Siemens
4	Ballscrew	HIWIN/PMI
5	Linear Guideway	HIWIN/PMI
6	NSK/SKF/IBC	NSK/SKF/IBC
7	Spindle	KENTURN/Royal
8	Spindle Oil Txias	RUCOL
9	Servo coupling	KTR
10	Thaum tshav kub kub Exchanger Rau Hluav taws xob txee	RUCOL
11	MPG	TOSOKU / Siemens
12	ATC (Automatic Tool Changer) -Opt.	SANJET/AIMACH
