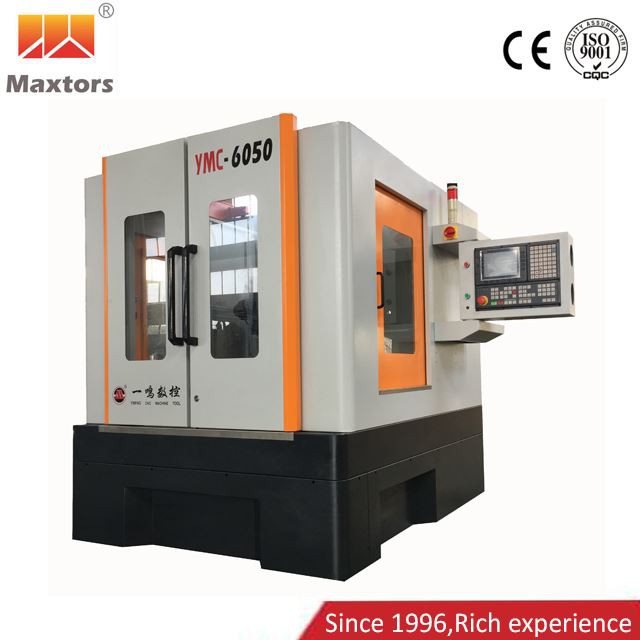

Ntsug Hom Tshiab Mob 5 Axis Mini CNC Mill

Ntsug Hom Tshiab Mob 5 Axis Mini CNC Mill nrog tilting thiab teb rooj

Muab ob npaug rau kab hom tshuab lub cev

nrog 4/5 th axis tilting teb rooj dia.100mm

lwm qhov loj kuj muaj

Qhov me me ntsug Hom Tshiab Txheej Txheem 5 Axis Mini CNC Mill rau siab precision pwm ua.

Cov khoom	Chav tsev	YMC-6050
Mus ncig
X/Y/Z Travel	mm	500×600×230
A/B axis	deg	-30 degree ~ ntxiv rau 110 degree
C Axis	deg	360 degree
Spindle Nose rau 4/5th axis rooj Center (Appr.)	mm	360
Qhov nrug nruab nrab ntawm kab (Appr.)	mm	660
Rooj
Table dia.	mm	100
Max.Loading	KG	20
Qhov nrug nruab nrab ntawm Kem	mm	660
Spindle
Max.Spindle Ceev	rpm ua	24000
Spindle lub cev muaj zog	KW	4
Spindle Taper		ER 25
Feedrate
Rapid feedrate (X / Y / Z)	m/min	7.5/7.5/7.5
Txiav feedrate	m/min	6
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Lwm Yam Khoom
Lub zog xav tau	KVA	10
Input voltage	Volt	220V~440V
Tshuab Footprint (L × W)	mm	1950×1800
Tshuab Qhov siab	mm	2400
Qhov hnyav	T	2.4
CNC maub los		Maxtors 5 Axis SimutaneousController
