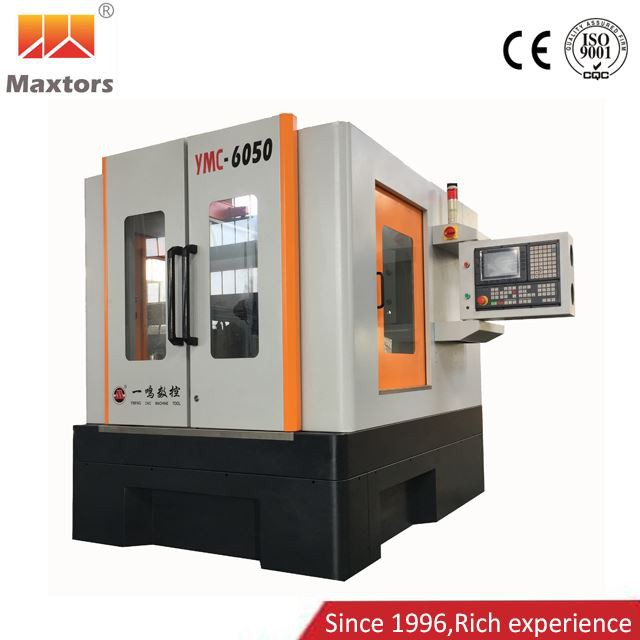

Me 5 Axis Cnc Tshuab

Maxtors Ob Chav Kem Hom Me 5 Axis Cnc Tshuab

Gantry hom 5 axis cnc milling tshuab

XYZ Ncig Tebchaws: 500x600x230mmThis Me 5 Axis Cnc Tshuab Main Specification:

4/5th axis qaij thiab cov lus teb dia.100mm

A/B Axis qaij degree: -30 ~ ntxiv rau 110 degree

C Axis teb degree: 360 degree

CNC maub los: 5 Axis ib txhij Maxtors cnc maub los lossis Syntec maub los

koj tuaj yeem xaiv cnc maub los raws li koj cov khoom ua haujlwm

Qee qhov haujlwm tsuas yog thov 5 axis nrog 4 axis ib txhij,

Tab sis cov khoom siv complex xav tau 5 axis ib txhij

Tsis tas li yog tias xav tau Cov cuab yeej hloov pauv hloov pauv tuaj yeem hloov qhov ntxaiv mus rau 5.5KW BT30 24000RPM Nrog 12T ATC

Ntau qhov sib txawv mus txawv tebchaws muaj:

XYZ: 600x700x270mm / 700x800x300mm / 800x1000x350mm / 1000x1200x400mm

thiab loj loj tuaj yeem kho raws li koj cov khoom loj thiab cov kev xav tau.

Maxtors CNC: Ua CNC Tshuab Hoobkas hauv Suav teb

Peb ib txwm nyob ntawm koj ib sab.

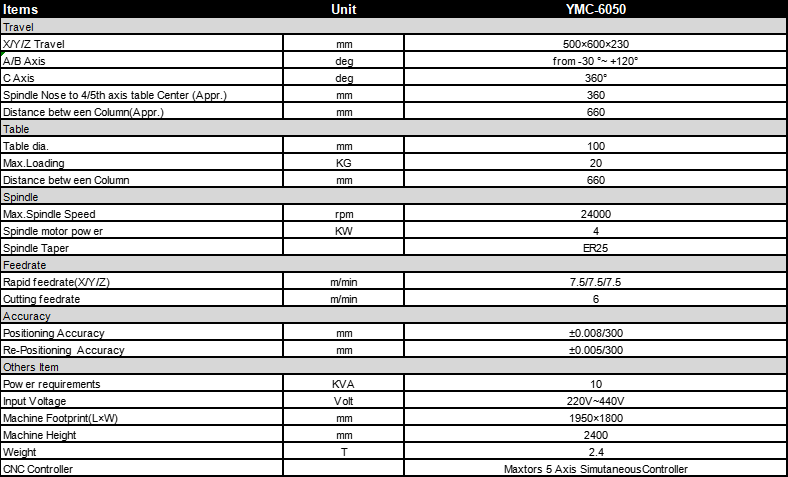

Me 5 Axis Cnc Tshuab Specification Sheet:

FAQ

Q1. Yuav xa kuv qhov kev nug li cas?

Thov hu rau peb ntawm email, hu xov tooj, thiab lwm yam xws li Wechat, Skype, WhatsApp thiab lwm yam.

Q2. Kuv tuaj yeem tau txais kev tawm tswv yim ntev npaum li cas tom qab nug?

Feem ntau hais txog 12 teev hauv hnub ua haujlwm.

Q3. Kuv tuaj yeem xaiv cov tshuab tsim nyog tshaj plaws li cas?

Thov qhia rau peb paub seb qhov loj npaum li cas thiab kev teeb tsa ntawm lub tshuab koj cia siab, lossis xa ncaj qha xa koj cov duab kos rau peb, tom qab ntawd peb tuaj yeem pom zoo rau koj cov tshuab tsim nyog raws li.

Q4. Cov khoom kub ntawm koj lub tuam txhab yog dab tsi?

Kab rov tav CNC tshuab dhos tshuab, Slant txaj CNC tshuab dhos, CNC Engraving milling tshuab, siab ceev cnc milling tshuab, vmc, ntsug tshuab chaw, gantry cnc tshuab chaw, 4 axis cnc tshuab, 5 axis cnc tshuab, CNC Milling tshuab thiab CNC ntsug Machining center thiab lwm yam.

Cim npe nrov: me me 5 axis cnc tshuab
