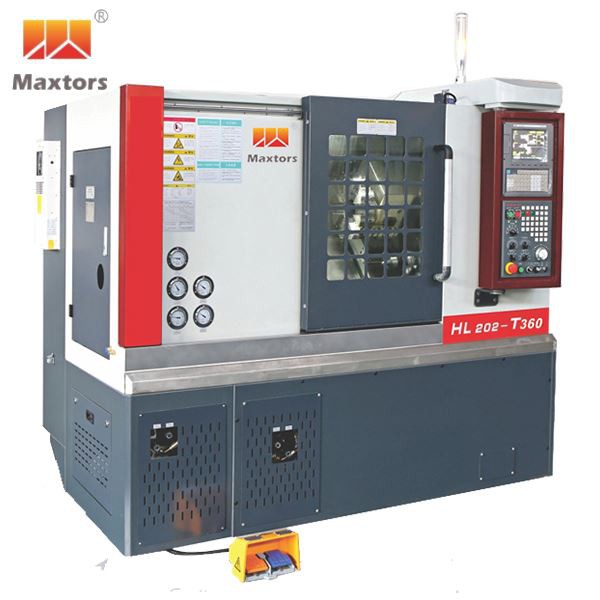

Slant txaj CNC tig

HORIZONTAL CNC tshuab dhos tshuab

Xa kev nug

HORIZONTAL CNC tshuab dhos tshuab

Khoom Specification

Yam khoom		Chav tsev	HL202-J430	HL202-J430A	HL202-T360	HL202-T360A
Ua haujlwm Muaj peev xwm	Max viav vias dia.over txaj	mm	Φ480	Φ480	Φ520	Φ520
	Qhov siab ntawm zawv zawg phaj rau Spindle Center	mm	111	111	111	111
	Max. Tig Dia.	mm	Φ380	Φ380	Φ380	Φ380
	Max.Workpiece Ntev	mm	360	360	360	360
Spindle	Spindle Thru-Hole Dia.	mm	Φ56	Φ58	Φ56	Φ58
	Spindle Hom	/	A2-5	A2-6	A2-5	A2-6
	Chuck Loj	Ntiv	6	8	6	8
	Max. Spindle Ceev	rpm ua	4000	4000	4000	4000
	Max.Bar Dia.Pass Spindle	mm	Φ33	Φ45	Φ33	Φ45
	Spindel Tsav	KW	5.5	7.5	5.5	7.5
Pub	X Axis Travel	mm	430	430	180	180
	Z Axis Ncig Tebchaws	mm	450	450	450	450
	Y Axis Travel	mm	/	/	/	/
	X/Z Axis Tsav Torque	N.m	9.6	9.6	9.6	9.6
	Nyob Turret Live Tool Tsav Torque		/	/	/	/
	X Axis Ballscrew dia./Pitch	mm	Φ32/10	Φ32/10	Φ32/10	Φ32/10
	Z Axis Ballscrew dia./Pitch	mm	Φ32/10	Φ32/10	Φ32/10	Φ32/10
	Y Axis Ballscrew dia./Pitch	mm	/	/	/	/
	Rapid federate (X/Z/Y)	m/min	X25/Z25	X25/Z25	X25/Z25	X25/Z25

Yam khoom		Chav tsev	HL202-D300	HL202-D300A	HL202-Y60	HL202-Y60A
Ua haujlwm Muaj peev xwm	Max viav vias dia.over txaj	mm	Φ520	Φ520	Φ520	Φ520
	Qhov siab ntawm zawv zawg phaj rau Spindle Center	mm	111	111	127	127
	Max. Tig Dia.	mm	Φ200	Φ200	Φ200	Φ200
	Max.Workpiece Ntev	mm	300	300	300	300
Spindle	Spindle Thru-Hole Dia.	mm	Φ56	Φ58	Φ56	Φ58
	Spindle Hom	/	A2-5	A2-6	A2-5	A2-6
	Chuck Loj	Ntiv	6	8	6	8
	Max. Spindle Ceev	rpm ua	4000	4000	4000	4000
	Max.Bar Dia.Pass Spindle	mm	Φ33	Φ45	Φ33	Φ45
	Spindel Tsav	KW	5.5	7.5	5.5	7.5
Pub	X Axis Travel	mm	105	105	105	105
	Z Axis Ncig Tebchaws	mm	450	450	450	450
	Y Axis Travel	mm	/	/	60	60
	X/Z Axis Tsav Torque	N.m	9.6	9.6	9.6	9.6
	Nyob Turret Live Tool Tsav Torque		14.6	14.6	9.6	9.6
	X Axis Ballscrew dia./Pitch	mm	Φ32/10	Φ32/10	Φ32/10	Φ32/10
	Z Axis Ballscrew dia./Pitch	mm	Φ32/10	Φ32/10	Φ32/10	Φ32/10
	Y Axis Ballscrew dia./Pitch	mm	/	/	Φ32/10	Φ32/10
	Rapid federate (X/Z/Y)	m/min	X25/Z25	X25/Z25	X25/Z25/Y25	X25/Z25/Y25

CNC tshuab dhos siv

Lub tshuab yog tsim los ua txhua yam me me thiab nruab nrab-qhov loj me thiab cov phaj phaj, thiab tuaj yeem tig ntau yam thiab sab nraud ntawm lub cev revolved. Lub tshuab no yog siv dav hauv kev huv, valve, khoom siv hluav taws xob, khoom siv, tsheb, maus taus, kabmob thiab lwm yam.

CNC tshuab dhos nta

(1) Cov neeg raug siab dua Taiwan linear guideways

(2) Kev kub ceev spindle chav tsev

(3) Integrated tsis siv neeg lubrication

(4) Ib-thooj Casting slant txaj cnc tshuab dhos ib lub tshuab txaj, ruaj khov dua

45 degree slant txaj, yooj yim rau kev nti, siab dua TAIWAN LINEAR GUIDE WAYS
