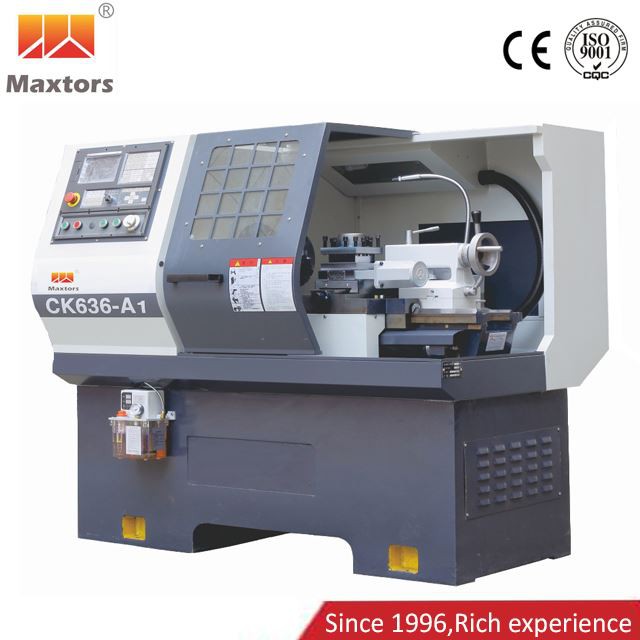

Kab rov tav CNC tshuab dhos

Product Description:

Kab rov tav CNC tshuab dhos yog lub tshuab ua haujlwm siab siv dav siv hauv machining, tsheb tsim, aerospace, nkoj tsim thiab lwm yam haujlwm. Nws zoo kawg nkaus combines automation technology thiab tsoos machining technology, muaj tsis tshua muaj siab ua precision thiab efficiency, thiab zoo heev txhim kho efficiency ntau lawm.



Cov txiaj ntsig tseem ceeb ntawm Horizontal CNC Tshuab dhos suav nrog:
1. Kev ua haujlwm siab. Cov kev taw qhia ntawm automation technology tau zoo heev txhim kho cov efficiency ntawm Kab rov tav CNC tshuab dhos, uas yog ob peb zaug siab dua li cov tsoos machining thiab zoo heev shortened lub voj voog ntau lawm.
2. High precision. Kab rov tav CNC tshuab dhos txais lub computer suav tswj tshuab, uas muaj qhov tsis siv neeg siab precision, ruaj khov thiab txhim khu kev ua haujlwm zoo, thiab tuaj yeem ua tau raws li cov kev xav tau ntawm ntau qhov chaw.
3. Multifunctional. Kab rov tav CNC tshuab dhos tuaj yeem ua cov khoom ua haujlwm ntawm ntau yam duab thiab qhov ntau thiab tsawg, thiab muaj zog yoog raws thiab yooj yim kom tau raws li qhov xav tau ntawm cov khoom sib txawv.
4. Tsawg zog noj. Piv nrog rau cov cuab yeej siv tshuab ib txwm siv, Kab rov tav CNC Tshuab dhos muaj kev siv zog qis dua, kev pab lub neej ntev dua, thiab kev lag luam ntau dua thiab ib puag ncig zoo.



Vim li cas thiaj xaiv peb:

Cov cuab yeej sib txawv turret rau xaiv.

Kuj tseem nyob turret rau tig milling muaj.

Pav ca txaj lossis Slant txaj Kab rov tav CNC tshuab dhos


Khoom Specification

Yam khoom		Chav tsev	CK6(1)36-A1/A2	CK6140-A	CK6140-B	CK6140-C	TIAB SA 6150	wb 6163
Ua Haujlwm Muaj Peev Xwm	Max viav vias dia.over txaj	mm	360	400	400	400	500	630
	Max.Swing dia.on zawv zawg phaj	mm	160	210	210	210	270	330
	Max.Workpiece Ntev	mm	400	750	750	750	1000/1500	1000/1500
Spindle	Spindle ceev ntau yam	rpm ua	150~3000	150-2500	150-2000	150-1500	150~2000	9~1000
	Spindle ceev cov kauj ruam		Stepless	Stepless	Stepless	Stepless	Stepless	Stepless hauv 4 hloov
	Spindle Bore	mm	Φ48/60	Φ58	Φ82	Φ115	Φ82	Φ105
	Spindle Taper Qhov	mm	Φ56/60	6#	90	115	90	Metric 120 (1:20)
	Maual Chuck		Φ160/200	Φ200	Φ250	Φ320	Φ250	Φ325
	Spindle Tsav	KW	3/4	5.5	7.5	7.5	7.5	11
Pub	X Axis Ncig Tebchaws (Nrog Cov Ntawv Tshaj Tawm)	mm	220	230	230	230	260	490
	X Axis Ncig Tebchaws (Nrog Cov Cuab Yeej Tawm)	mm	300	/	/	/	/	/
	Z Axis Ncig Tebchaws	mm	400	750	750	750	1000/1500	1000/1500
	X/Z Rapid federate	m/min	8/10	8/10	8/10	8/10	8/10	6/10
	X/Z Min.Input unit	mm	0.001	0.001	0.001	0.001	0.001	0.001
Qhov tseeb	X/Z Repeatability raug		0.005/0.008	0.005/0.008	0.005/0.008	0.005/0.008	0.007/0.01	0.007/0.01
Chaw Nres Tsheb	4 Chaw Nres Tsheb		Std.	Std.	Std.	Std.	Std.	Std.
	6 Chaw Nres Tsheb		Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.
	Hom kab		Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.
Tailstock	Tailstock Center (MT)		4#	4#	4#	4#	5#	6#
Nto Roughness	Cov hlau tsis muaj hlau	μm	0.5	0.5	0.5	0.8	0.5	0.8
	Hlau	μm	0.8	0.8	0.8	1.6	0.8	1.6
Tshuab Loj	Tshuab Loj (L × W × H)	mm	1520×1070×1460	2050×1180×1560	2050×1180×1560	2050×1180×1560	2800/3300×1360×1650	3298/3858×1660×1690
	Tshuab hnyav	KG	1100/1200	1840	1920	2100	2800/3100	3800/4300
CNC maub los	KND K100T-Ci		Std.	Std.	Std.	Std.	Std.	Std.
	GSK980TB 3		Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.
	SYNTEC		Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.
	FANUC / Siemens / Mitsubishi		Xaiv.	Xaiv.	Xaiv.	Xaiv.	Xaiv.

Daim ntawv thov:

High Quality Me & loj Kab rov tav CNC tshuab dhos rau muag siv nyob rau hauv cov khoom siv hluav taws xob, instrumentation khoom lag luam, tsheb, maus taus accessories, fastener bearings, yees duab machinery, hardware watches thiab moos, tsom iav, kab lis kev cai thiab kev kawm khoom siv, hluav taws xob machinery, li qub, Gas yeeb nkab fittings thiab lwm yam high-precision complex qhov chaw raug, no series CNC tshuab dhos tig tshuab nqe yog lub hardware thiab mechanical processing kev lag luam cov khoom npaum thiab npaum.

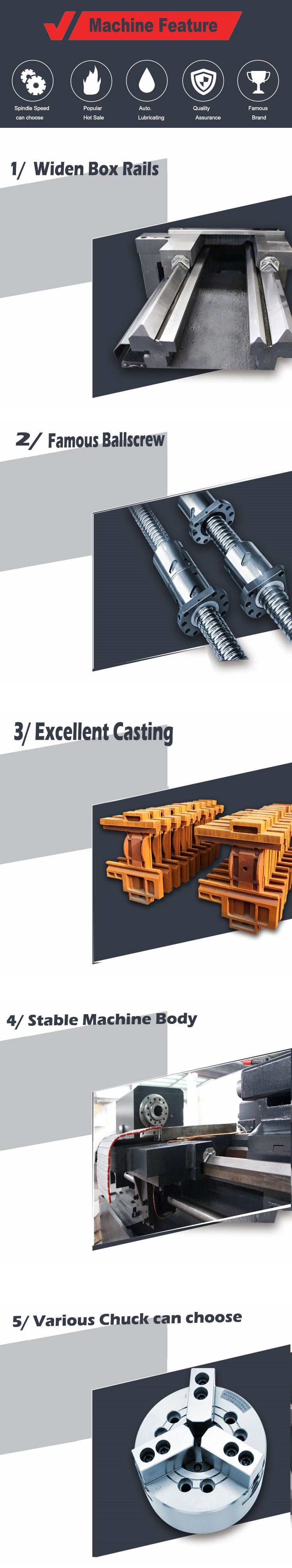

Technical Details:

High Quality Kab rov tav CNC tshuab dhos kev muag khoom

1. Ntau zaus stepless ceev tswj

2. Servo system

3. Plaub txoj hauj lwm hluav taws xob cov cuab yeej tuav









FAQ

Q: Yuav ua li cas txog koj qhov kev pab cuam tom qab muag?

A: Peb Cov Khoom Siv Hluav Taws Xob Zoo Siab CNC Lathe Flat txaj lossis Slant txaj muag,

Lub sij hawm Warranty zoo yog 12 lub hlis thiab Peb tuaj yeem Muab Kev Pabcuam Kev Pabcuam hauv online thiab kev ua haujlwm tshuab Vedio .

Peb kuj tuaj yeem muab kev cob qhia ntawm qhov chaw thiab ua haujlwm Vedio



Q: Yuav ua li cas txog koj lub tshuab zoo? Peb txhawj xeeb txog qhov zoo.

A: MAXTORS yog ib hom lag luam loj hauv Suav teb. los ntawm peb ntau xyoo kev tshawb fawb hauv thev naus laus zis, peb cov qauv tsim nrog rau cov qauv thiab cov ncauj lus kom ntxaws sercurity thiab precision tau txhim kho zoo heev, thiab tuaj yeem ua tau raws li txhua tus qauv CE lossis tus qauv nruj nruj.Our cov tshuab xa tawm thoob ntiaj teb mus txog 20 lub teb chaws uas muaj hlau phaj kev lag luam.Thiab qhov twg muaj peb cov tshuab, muaj lub koob npe nrov zoo thiab cov neeg siv khoom txaus siab.



Q: Vim li cas thiaj xaiv Maxtors tuam txhab?

A: Peb tuaj yeem muab cov kev pabcuam customized raws li cov neeg siv khoom xav tau. Peb kuj muaj cov kws tshaj lij R & D pab neeg thiab pab pawg muag khoom sai.

nruj me ntsis tswj txhua kauj ruam ntawm QA & QC txheej txheem txheej txheem. Peb muaj ib pab neeg tom qab muag kev pab tshaj li sai tau daws txhua yam teeb meem koj yuav muaj nyob rau hauv kev siv.
