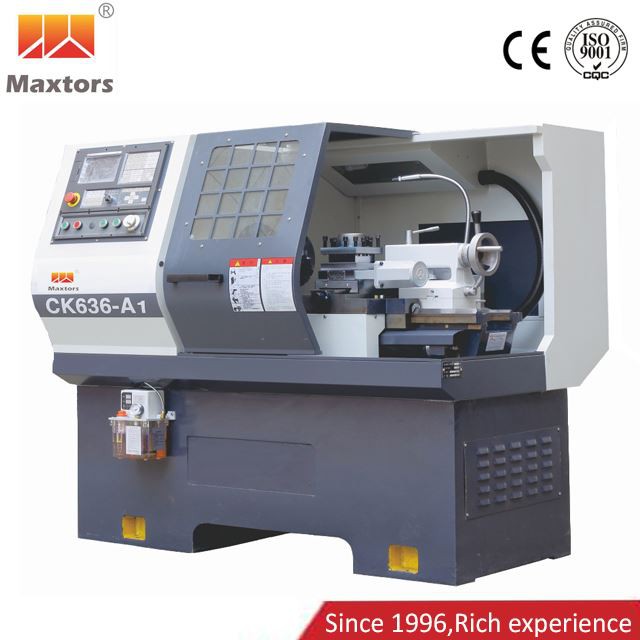

Lub txaj txaj CNC tig
CK636 / CK6136 / CK636 / CK6140 / CK6150 / CK6160 / CK6163 / CK6180 / CK6183
Box txoj kev / Txoj kev nyuaj hom Kab rov tav CNC tshuab dhos tshuab
Taw qhia
CNC tshuab cuab yeej yog lub tshuab ua tsis siv neeg tsim nyog rau kev tsim khoom niaj hnub no. Lo lus tseem ceeb ntawm nws yug yog automation. Nws yog ib yam khoom siv CNC nrog ntau qhov kev siv hauv tsev thiab kev pabcuam dav. Lub txaj txaj CNC tig yog ib qho yooj yim CNC retrofit nrog ob lub dav hlau tsheb ciav hlau sib npaug rau hauv av dav hlau. Zoo rigidity thiab siab raug raug ua kom nws ua ntau yam khoom uas yuav tsum tau muaj cov duab zoo. Tsis tas li ntawd, nws tuaj yeem tsim cov khoom uas zoo sib xws rau cov duab geometry uas xav tau ntawm daim duab, suav nrog arcs thiab lwm yam nkhaus profile. Kev ua haujlwm zoo tuaj yeem muab qhov tseeb qhov tseeb thiab rov ua dua.
Nta
1. Lub txaj ntawm lub txaj txaj CNC tig txais kev kho lub suab super zaus quenching ntawm cov lus qhia kev tsheb nqaj hlau, yog li qhov nyuaj ntawm qhov saum npoo yog siab dua thiab nws yog hnav-resistant.
2. Lub tshuab pub noj siv lub tshuab servo tsav ncaj qha rau lub pob ntsia hlau, yog li qhov kev sib kis tau siab.
3. Semi-enclosed lossis tag nrho cov qauv tsim tuaj yeem muab kev tiv thaiv zoo.
4. Cov txheej txheem ntawm cov khoom tsim nyog, kev tswj hwm kuj tseem ruaj khov, thiab kev ua haujlwm yooj yim.
Paub meej
|
Yam khoom |
Chav tsev |
CK6(1)36-A1/A2 |
CK6140-A |
CK6140-B |
CK6140-C |
TIAB SA 6150 |
wb 6163 |
wb 6183 |
|
|
Ua haujlwm |
Max viav vias dia.over txaj |
mm |
360 |
400 |
400 |
400 |
500 |
630 |
830 |
|
Max.Swing dia.on zawv zawg phaj |
mm |
160 |
210 |
210 |
210 |
270 |
330 |
500 |
|
|
Max.Workpiece Ntev |
mm |
400 |
750 |
750 |
750 |
1000/1500 |
1000/1500 |
1000/1500 |
|
|
Spindle |
Spindle ceev ntau yam |
rpm ua |
150~3000 |
150~2500 |
150~2000 |
150~1500 |
150~2000 |
9~1000 |
7~800 |
|
Spindle ceev cov kauj ruam |
|
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless hauv 4 hloov |
||
|
Spindle Bore |
mm |
Φ48/60 |
Φ58 |
Φ82 |
Φ115 |
Φ82 |
Φ105 |
Φ105 |
|
|
Spindle Taper Qhov |
mm |
Φ56/60 |
6# |
90 |
115 |
90 |
Metric 120 (1:20) |
Metric 120 (1:20) |
|
|
Maual Chuck |
|
Φ160/200 |
Φ200 |
Φ250 |
Φ320 |
Φ250 |
Φ325 |
Φ325 |
|
|
Spindle Tsav |
KW |
3/4 |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
11 |
|
|
Pub |
X Axis Ncig Tebchaws (Nrog Cov Ntawv Tshaj Tawm) |
mm |
220 |
230 |
230 |
230 |
260 |
490 |
490 |
|
X Axis Ncig Tebchaws (Nrog Cov Cuab Yeej Tawm) |
mm |
300 |
- |
- |
- |
- |
- |
- |
|
|
Z Axis Ncig Tebchaws |
mm |
400 |
750 |
750 |
750 |
1000/1500 |
1000/1500 |
1000/1500 |
|
|
X/Z Rapid federate |
m/min |
8/10 |
8/10 |
8/10 |
8/10 |
8/10 |
6/10 |
6/10 |
|
|
X/Z Min.Input unit |
mm |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
|
|
Qhov tseeb |
X/Z Repeatability raug |
|
0.005/0.008 |
0.005/0.008 |
0.005/0.008 |
0.005/0.008 |
0.007/0.01 |
0.007/0.01 |
0.007/0.01 |
|
Tool |
4 Chaw Nres Tsheb |
|
Std. |
||||||
|
6 Chaw Nres Tsheb |
|
Xaiv. |
|||||||
|
Hom kab |
|
Xaiv. |
|||||||
|
Tailstock |
Tailstock Center (MT) |
|
4# |
4# |
4# |
4# |
5# |
6# |
6# |
|
Nto Roughness |
Cov hlau tsis muaj hlau |
μm |
0.5 |
0.5 |
0.5 |
0.8 |
0.5 |
0.8 |
0.8 |
|
Hlau |
μm |
0.8 |
0.8 |
0.8 |
1.6 |
0.8 |
1.6 |
1.6 |
|
|
Loj |
Tshuab Loj (L × W × H) |
mm |
1520×1070×1460 |
2050×1180×1560 |
2050×1180×1560 |
2050×1180×1560 |
2800/3300×1360×1650 |
3298/3858×1660×1690 |
|
|
Tshuab hnyav |
kg |
1100/1200 |
1840 |
1920 |
2100 |
2800/3100 |
3800/4300 |
4000/4500 |
|
|
CNC maub los |
KND K100T-Ci |
|
Std. |
||||||
|
GSK980TB 3 |
|
Xaiv. |
|||||||
|
SYNTEC |
|
Xaiv. |
|||||||
|
FANUC / Siemens / Mitsubishi |
|
Xaiv. |
|||||||
FAQ
Q. Koj lub sijhawm ua haujlwm li cas yog dab tsi?
A.Peb lub tuam txhab cov sij hawm coj mus kuaj muaj txij li 3-4 lis piam tom qab tau txais kev txiav txim.
Q.Dab tsi yog cov nqe lus ntawm kev them nyiaj koj muab?
A. Peb lees txais T / T, L / C, thiab nyiaj ntsuab, O / A thiab lwm yam.
Q. Hom pob twg koj muab?
A.Nquag nyob rau hauv Steel pallets, kom paub tseeb tias tag nrho cov khoom nyob rau hauv zoo mob.
Q.Dab tsi yog MOQ ntawm lub txaj txaj CNC tig?
A.The MOQ nyob ntawm koj cov cai rau xim, logo thiab lwm yam. Rau qee yam khoom ib txwm, peb muaj hauv Tshuag, MOQ yog 1 teeb.
Q.Koj puas muaj daim ntawv pov thawj CE
A. Yog, peb muaj CE daim ntawv pov thawj, tshuab zoo yog ib xyoos lav.
Q.Yuav tswj cov khoom zoo li cas?
A.Peb yeej ib txwm muab qhov tseem ceeb ntawm cov qib zoo yog khaws cia. Ntxiv mus, lub hauv paus ntsiab lus peb ib txwm tuav yog "kom muab cov neeg siv khoom zoo dua, tus nqi zoo dua, thiab kev pabcuam zoo dua".
