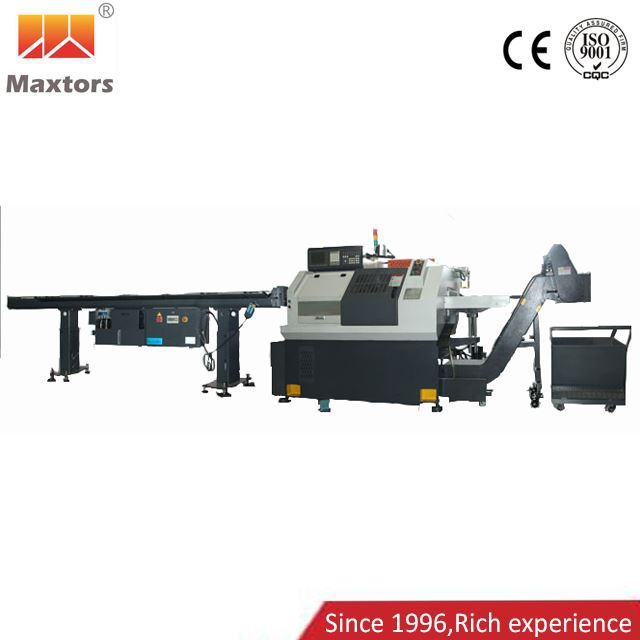

Tshuab dhos Milling tshuab
HL series tshuab cuab yeej yog kab rov tav CNC tshuab dhos nrog 45-degree inclination ntawm lub txaj, uas yog ib qho kev tswj xyuas tas li nrog ob lub axes (kab rov tav X axis, longitudinal Z axis).
Nrog txoj haujlwm tig thiab milling
QHOV CHAW UA HAUJ LWM
HL series tshuab cuab yeej yog kab rov tav CNC tshuab dhos nrog 45-degree inclination ntawm lub txaj, uas yog kev tswj xyuas txuas ntxiv nrog ob lub axes (kab rov tav X axis, longitudinalZ axis). CNC system tuaj yeem tswj X thiab Z axis txav tib lub sijhawm. Nws tuaj yeem ua tiav cylindrical thiab conical nto, cylindrical nto, ncig arc qhov chaw, qhov kawg, grooving, ntau hom xov (metric thiab imperial threads, conical threads, thiab lwm yam) rau ntau hom shafts thiab discs. Txo txoj kab uas hla, lub ntsej muag xov), drilling, reaming, tho txawv, chamfering thiab lwm yam machining txheej txheem.
Lub tshuab no tuaj yeem siv ntau yam kev tswj hwm xws li FUNUC (Fanuc), SINUMERIK (Siemens), MITSUBISHI (Mitsubishi), LNC (Taiwan BAOYUAN), KND, GSK (Guangzhou CNC) thiab lwm yam. Lub AC servo lub cev muaj zog ua cov khoom siv tsav. semi-kaw-loop CNC system nrog txhim khu kev qha tswj kev ua tau zoo. Lub tshuab centralized tswj vaj huam sib luag ua rau lub tshuab yooj yim thiab raug. Cov cuab yeej siv tshuab muaj ntau yam kev siv, kev ua haujlwm siab, qhov tseeb thiab ruaj khov, qhov zoo sib xws, thiab kev ua haujlwm yooj yim. Muaj peev xwm ua tau raws li qhov ua tau zoo ntawm cov khoom lag luam ib leeg lossis batch.
Standard Accessories
Siemens 808d tswj qhov system
3 jaw cog
Chip conveyor nrog chip conveyor
Tailstock
8 postions Tool turret
NSK bearing los ntawm Taiwan
Taiwan linear phau ntawv qhia
coolant system nrog coolant twj tso kua mis
Pob ntsia hlau los ntawm Taiwan

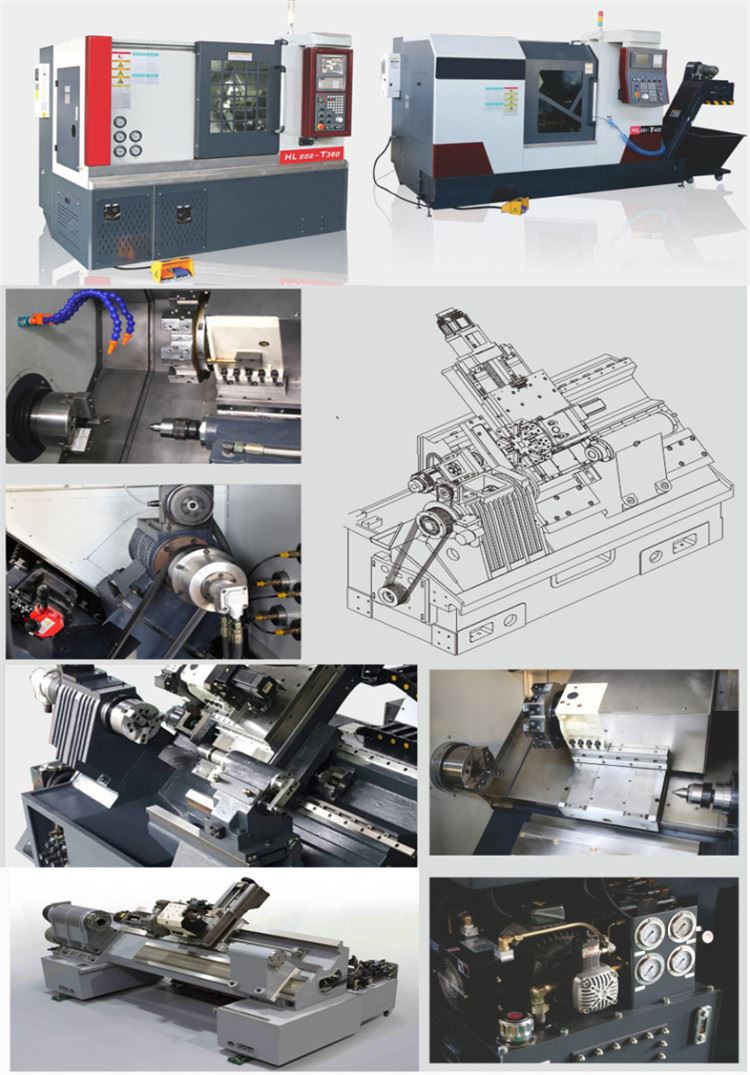

Khoom Specification
Yam khoom | Chav tsev | HL251-T400 | HL251-T750 | HL252-T400 | HL252-T750 | |
Ua haujlwm | Max viav vias dia.over txaj | mm | Φ520 | Φ520 | Φ520 | Φ520 |
Max.Tig Dia. | mm | Φ370 | Φ370 | Φ370 | Φ370 | |
Max.Workpiece Ntev | mm | 400 | 750 | 400 | 750 | |
Max. Txiav Dia. | mm | Φ250 | Φ250 | Φ250 | Φ250 | |
Max. Bar dia. | mm | Φ45 | Φ45 | Φ65 | Φ65 | |
Spindle | Spindle Center rau pem teb | mm | 1075 | 1075 | 1075 | 1075 |
Spindle Tsav | KW | 7.5/11 | 7.5/11 | 11/15 | 7.5/11 | |
Spindle ceev ntau yam | rpm ua | 5000 | 5000 | 3000 | 3000 | |
Spindle Thru-Hole Dia. | mm | Φ58 | Φ58 | Φ82 | Φ82 | |
Spindle Taper Qhov (MT) | mm | MT 6 # | MT 6 # | 90 | 90 | |
Spindle Nose NO. (ISO) | A2-6 | A2-6 | A2-8 | A2-8 | ||
Pub | Taug kev (X / Z) | mm | 240/450 | 240/830 | 240/450 | 240/830 |
Rapid federate (X/Z/Y) | m/min | 25/25 | 25/25 | 25/25 | 25/25 | |
X Axis Ballscrew dia./Pitch | mm | Φ32/10 | Φ32/10 | Φ32/10 | Φ32/10 | |
Z Axis Ballscrew dia./Pitch | mm | Φ32/10 | Φ32/10 | Φ32/10 | Φ32/10 | |
Tool Turret | Cov cuab yeej No. | 8/10/12 | 8/10/12 | 8/10/12 | 8/10/12 | |
Tig Tool Holder Hom | 25×25 | 25×25 | 25×25 | 25×25 | ||
Max.dia.of tho txawv Tool Holder | Φ40 | Φ40 | Φ40 | Φ40 | ||
Hydraulic Tailstock | Tailstock tes tsho dia. | mm | Φ100 | Φ100 | Φ100 | Φ100 |
Tailstock Tes Tsho Mus Ncig | mm | 100 | 100 | 100 | 100 | |
Tailstock Center (MT) | 5# | 5# | 5# | 5# | ||
Qhov tseeb | Positioning raug (X / Z) | 0.008 | 0.008 | 0.008 | 0.008 | |
Re-Positioning raug (X/Z) | 0.004 | 0.004 | 0.004 | 0.004 | ||
Lwm yam khoom | Tag Nrho Lub Zog | KVA | 21 | 21 | 23 | 23 |
Nws pib Chip Conveyor | Sab nraum qab | Sab nraum qab | Sab nraum qab | Sab nraum qab | ||
Tshuab Loj (L × W × H) | mm | 2902×1800×1925 | 3282×1800×1925 | 2902×1800×1925 | 3282×1800×1925 | |
Tshuab hnyav | KG | 4000 | 4500 | 4100 | 5000 | |
CNC maub los | SYNTEC 21 TA | Std. | Std. | Std. | Std. | |
FANUC / Siemens / Mitsubishi | Xaiv. | Xaiv. | Xaiv. | Xaiv. | ||
Peb qhov kev pabcuam:
MAXTORS muab 7x24-teev kev pabcuam online ua ntej muag, kev pabcuam ua haujlwm raws li kev txiav txim, thiab kev pabcuam kev thauj mus los. Nrog rau xyoo ntawm kev nkag siab ntawm ntau lub khw, engineers uas tau mus ncig ntau lub tebchaws rau lub sijhawm ntev muab kev pabcuam kev teeb tsa. Tsis tas li ntawd, peb tuaj yeem pab cov neeg siv khoom ua tiav cov kev pabcuam zoo xws li kev tshem tawm ntshuam, yog li txo cov nqi ntawm cov neeg siv khoom hauv txhua yam.
FAQ
Kev xav tau rau cov neeg siv khoom: |
1. Hydraulic roj: imported VG46# anti-coj hydraulic roj; thiab cov roj yuav tsum tau nyob ntawm lub tshuab specification |
2. Ib puag ncig kub: 0 degree - ntxiv rau 40 degree |
3. Ib puag ncig cov av noo: txheeb ze av noo 20-80 feem pua RH (non-condensing) |
4. Khaws kom deb ntawm qhov chaw muaj zog vibration thiab electromagnetic cuam tshuam |
5. Npaj lub hauv paus raws li lub hauv paus kos duab |
6. Voltage fluctuation 10 feem pua --5 feem pua |
