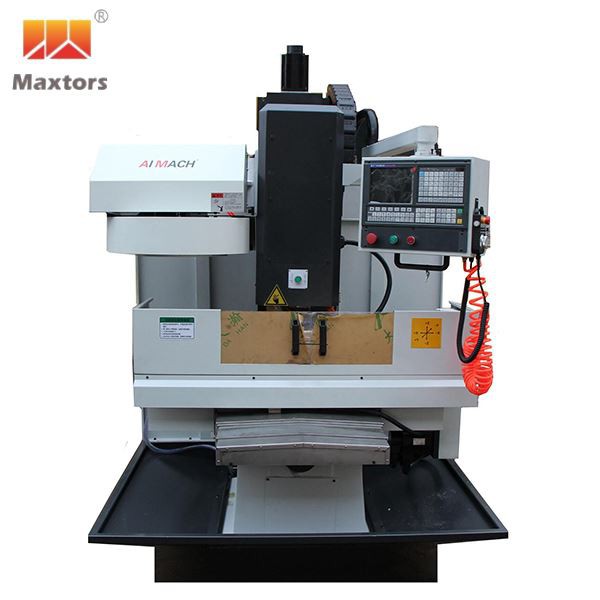

Mini Milling Tshuab

Mini Milling Tshuab

Qhov txawv me me muaj.
mini / me lossis loj loj tuaj yeem tsim tau

Qhov txawv me me muaj.

mini / me lossis loj loj tuaj yeem tsim tau

Cov khoom	Chav tsev	YMC-600V/YMC-650V Eco
Table Size	mm	800×400
Max.Loading	KG	300
X/Y/Z Travel	mm	600/360/450
Spindle qhov ntswg rau lub rooj	mm	70~520
Spindle taper		7/24 Taper No.40
Spindle ceev	rpm ua	10000
Spindle lub cev muaj zog	KW	3.7
Rapid Feedrate (X/Y/Z)	m/min	10/10/10
Txiav Feedrate (X / Y / Z)	m/min	5/5/5
ATC Hom		Hom kaus
Tsis muaj cov cuab yeej	pcs	12
Positioning raug	mm	0.01
Re-Positioning raug	mm	0.008
Hneev taw	mm	2200×1900
Tshuab Qhov siab	mm	2300
G.W.	KG	2400

Standard Configuration

● Vertical Hom

● BT40 8000rpm Spindle

● Spindle coolant nozzle system

● XYZ Axis TAIWAN Linear rails

● XYZ Axis TAIWAN Ballscrews

● XYZ Axis Servo Tsav

● Umbrella type automatic tool changer 12 Chaw nres tsheb (Yeem)

● Ib nrab Tshuab Daim Ntawv Npog

● Hluav Taws Xob Txias Txias Tshuab

● Tsis siv neeg lubrication system

● Cua Pipe & Dej Yeeb

● Txiav Coolant system

● LED Ua Haujlwm Cheeb Tsam Teeb pom kev zoo

● Xaus ntawm qhov kev pab cuam lub teeb

● Portable Electronic handwheel (MPG)

● Chip flush coolant system

● Dej Tank

● Transformer (raws li qhov hluav taws xob hauv zos)

● Siemens 808D CNC maub los
