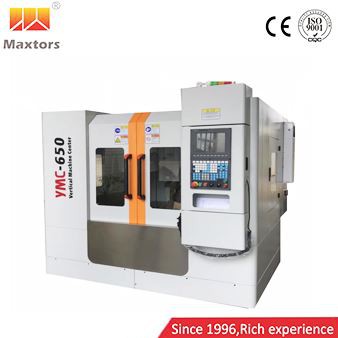

Milling Tshuab Center

VMC Vertical cnc milling Machining Center, lwm hom kuj tuaj yeem tsim



Khoom Specification

Yam khoom		Chav tsev	YMC-650V
Mus ncig	XYZ Travel	mm	650/400/400
	Qhov deb ntawm Spindle Nose mus rau lub rooj	mm	100~500
Lub rooj ua haujlwm	Table Size	mm	620×420
	Max.Loading ntawm Rooj	KG	500
Spindle	Spindle Taper		7/24 Taper No.40
	Spindle Ceev	rpm ua	8000
	Spindle Lub cev muaj zog	KW	3.7/5.5
Pub	Rapid Feedrate (X/Y/Z)	m/min	48/48/48
	Txiav Feedrate (X / Y / Z)	m/min	10/10/10
ATC/Tool Magazine	ATC Hom		Armless / caj npab hom
	No.of Tools		12/16T
	Cov Cuab Yeej Loj (Cov Cuab Yeej Tag Nrho)	mm	Φ80/300
	Max.Tool Luj	KG	8
Qhov tseeb	Positioning raug	mm	±0.008/300
	Re-Positioning raug	mm	±0.005/300
Lwm tus	Hneev taw	mm	2400×2000
	Tshuab Qhov siab	mm	2500
	G.W.	KG	4000
CNC maub los			FANUC



CNC maub los: KND / GSK / LNC / SIEMENS / SYNTEC / Mitsubishi / Heidenhain (Yeem)

>>Xa Lus nug Tau luv nqi



Ntau Yam Khoom

Txhua Qhov Loj Muaj (Lwm Qhov Loj yuav kho raws li)

Yam khoom (Model YMC)	650	850	1160	1270	1470	1580	1890	2011	2511
X	600	800	1100	1200	1400	1500	1800	2000	2500
Y	400	500	600	700	700	800	900	1100	1100
Z	400	550	600	650	700	700	850	800	800
Spindle	BT30/BT40/BT50/HSK-E40/HSK-A63/HSK-A100
Spindle Ceev (rpm)	8000~30000
CNC maub los	KND / GSK / LNC / SIEMENS / FANUC / Mitsubishi / Heidenhain



Qauv

Cov qauv ntawm cov cuab yeej siv tshuab raug tshuaj xyuas nrog ANSYS ntawm txhua theem los ntawm lub hauv paus tsim los lav qhov kev kub ceev thiab high-precision nruam machining. Kev simulation simulation rau deformation tsim thaum lub hauv paus ntawm lub tshuab cuab tam bears load yog ua los lav zoo heev dabtsi yog khoov rigidity ntawm tshuab cuab tam.

Specifications: YMC650V, YMV-850V/855V, YMC1160V,YMC-1270V,YMC-1270V



High quality CNC drilling thiab milling tshuab

1.Four pieces yooj yim cov cuab yeej magazine ntawm worktable nrog high efficiency.It muaj peev xwm paub tag nrho cov ua raws li tig ntsej muag, laum thiab taping nyob rau hauv ib tug clamping.

2.High thiab low step speeds muaj thiab muaj zog torque rau qis kauj ruam ceev.

3.Peb axis kis tau tus mob los ntawm precision pob txhuas ntsia hlau nrog servo lub cev muaj zog.

4.Ob hom ntawm cov cuab yeej hloov pauv muaj, manually thiab pneumatically.

5.Ntau yam nto moo CNC maub los muab kev xaiv ntau dua.

6.Machine sawv ntsug thiab tshuab lub cev yog tsim los sib cais kom yooj yim thiab hloov tau yooj yim los ntawm cov neeg siv.

Kev Tshaj Tawm: Peb khaws txoj cai ntawm kev hloov kho yam tsis qhia.



Peb Pab Pawg:

Peb yog ib pab neeg uas muaj kev paub dhau los thiab cov kws tshaj lij uas yog cov kws tshaj lij hauv kev ua haujlwm precision los ntawm cov txheej txheem tshawb fawb. Cov kws tshaj lij cov txuj ci sib sau ua ke pab pawg muaj zog thiab muaj tswv yim ntawm kev tsim, kev tshawb fawb thiab kev tsim kho, uas tsim peb cov khoom siv zog thiab kev sib tw. Thiab peb lub tuam txhab tab tom txhim kho sai thiab muab kev pabcuam tshwj xeeb rau txhua tus neeg siv khoom.
