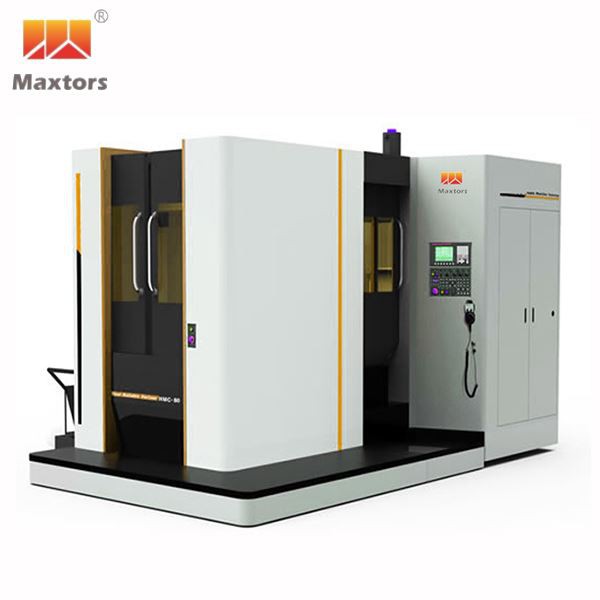

Kab rov tav tshuab Center

FANUC, Siemens, FOGOR, SYNTEC, Mitsubishi, Heidenhain, TAIWAN LNC cnc maub los tuaj yeem xaiv

Xa kev nug

MODEL MHMC 50

Ob chav Pallets thiab Ib Pallet ob leeg muaj

Ntau yam xws li:

FANUC, Siemens, FOGOR, SYNTEC, Mitsubishi, Heidenhain, TAIWAN LNC cnc maub los tuaj yeem xaiv

Khoom Specification

Yam khoom	Chav tsev	MHMC 50A	MHMC 50B
Mus ncig
X Axis Travel	mm	700	750
Y Axis Travel	mm	650	750
Z Axis Ncig Tebchaws	mm	600	750
Spindle
Spd. Center rau Rooj	mm	50-700	50-800
Spd.Nose rau Table Center	mm	200-800	100-850
Spindle Taper		BT50	BT50
Spindle Ceev	RPM	10000 lossis 6000	10000 lossis 6000
Spindle Tsav	KW	PAB 11/18.5	PAB 11/18.5
Spindle Max. Torque	N.m	307/442	307/442
Rotary Worktable (B Axis)
Worktable (LxW)	mm	500x500	500x500
Min. Qib	Deg	1 degree /0.001 degree	1 degree /0.001 degree
Basis Hole Dia.	mm	Φ50H7	Φ50H7
Max.Loading	KG	500	500
Faib qhov tseeb	sec	± 4 degree	± 4 degree
Rov ua qhov tseeb	sec	± 2 degree	± 2 degree
Worktable No.		2	2
Feedrate
Rapid Feedrate	m/min	24/24/24	24/24/24
Txiav Feedrate	hli/min	1-10000	1-10000
ATC
ATC No.	T	24(30/40/60)	24(30/40/60)
Qhov tseeb
Positioning raug	mm	±0.01	±0.01
Rov ua qhov tseeb	mm	±0.005	±0.005
Lwm tus
Cua Siab	Kgf/c㎡	6	6
Tshuab hnyav	KG	12000	12000
Hneev taw	mm	5300x3645	5000x3310
Tshuab Qhov siab	mm	3035	3200

3 About Us

Peb Pab Pawg:

Peb yog ib pab neeg ntawm kev paub dhau los thiab cov kws tshaj lij uas yog cov kws tshaj lij hauv kev ua haujlwm precision los ntawm cov txheej txheem tshawb fawb. Cov kws tshaj lij cov txuj ci sib sau ua ke pab pawg muaj zog thiab muaj tswv yim ntawm kev tsim, kev tshawb fawb thiab kev tsim kho, uas tsim peb cov khoom siv zog thiab kev sib tw. Thiab peb lub tuam txhab tab tom txhim kho sai thiab muab kev pabcuam tshwj xeeb rau txhua tus neeg siv khoom.

4 Exhibition and Customers

5. Honors & Certificate

6 Why Choose Us

13 Assembly & Commissioning

9 Partner Brand

12 Production Equipments

10 Package & Shipment

Advantage 1: CE, ISO certification.

Advantage 2: Tag nrho cov khoom nrhiav.

Advantage 3: Engineers nyob rau hauv lub Hoobkas lav qhov zoo tshaj plaws.

Advantage 4: Ntau tus neeg muag khoom ua lwm txoj hauv kev, lav koj tus nqi qis tshaj.

Qhov zoo 5: Cov neeg ua haujlwm muag khoom uas tau ua haujlwm rau ntau tshaj 10 xyoo, teb koj cov lus nug ua ntej muag / tom qab muag.

Advantage 6: Cov kws ua haujlwm ncig lub ntiaj teb los xyuas kom meej cov kev pab cuam tom qab muag.

Advantage 7: OEM, ODM ntau lawm, kom tau raws li cov neeg siv khoom xav tau ntawm txhua yam.

Qhov txiaj ntsig 8: 20 feem pua -30 feem pua ntawm tso nyiaj, muab kev ntseeg siab tshaj plaws rau koj thiab qhov siab tshaj plaws ntawm cov nyiaj.

Qhov zoo 9: Tsawg MOQ rau 1 units xwb.

Qhov txiaj ntsig 10: Rau cov khoom siv me me (xws li YMC-6050}/7060/YMC-855V.YMC-1160V) tau lees paub hauv Tshuag txhua xyoo puag ncig.

Peb yuav sim txhua lub tshuab ua tib zoo nyob rau hauv cov xwm txheej sib txawv los ntawm peb cov kws tshaj lij engineers kom paub tseeb tias peb cov tshuab zoo. Rau linear guides cnc milling tshuab, peb yuav kuaj qhov tseeb los ntawm Renishaw laser interferometer thiab yuav ua rau pob bar kuaj, nrog rau kev txiav txim siab ua ntej xa khoom. Nrog rau qhov kev sim ua ntu zus, peb tuaj yeem ua kom cov tshuab zoo.
