Khoom Taw Qhia

CNC tho txawv miller yog cov khoom siv ua haujlwm tsis siv neeg tsim los ntawm cov tshuab milling zoo tib yam. Kev siv thev naus laus zis ntawm ob lub hauv paus yog tib yam, thiab cov qauv kuj zoo ib yam. Cov khoom siv muaj ob hom tsis muaj cuab yeej magazine thiab nrog cov ntawv xov xwm. Ntawm lawv, hom nrog cov cuab yeej magazine kuj hu ua machining center. Cov cuab yeej muaj nyob rau hauv kab rov tav lossis ob kab, koj tuaj yeem xaiv ntau qhov sib txawv thiab hom raws li koj xav tau. Nws tuaj yeem siv tau zoo rau cov khoom siv tshuab, pwm thiab castings ntawm ntau qhov ntau thiab tsawg los txo cov nqi tsim khoom thiab nce kev lag luam.

Khoom nta

CNC tho txawv miller tuaj yeem ua cov khoom hloov tau thiab hloov tau yooj yim, thiab nws muaj kev ua haujlwm siab. Rau qhov chaw nrog cov contours nyuaj lossis qhov ntev uas nyuaj rau kev ua haujlwm nrog cov tshuab zoo tib yam, nws kuj tuaj yeem ua tiav yooj yim vim tias tom qab ib qho clamping thiab muab tso rau, cov cuab yeej tuaj yeem ua cov khoom uas yuav tsum tau ua ntau yam txheej txheem. Cov cuab yeej siv tsis tau tsuas yog muaj kev ua haujlwm siab thiab txhim khu kev ua haujlwm zoo, tab sis kuj tuaj yeem zam kev ua haujlwm tsis raug los ntawm tib neeg yam. Ua tsaug rau nws cov qib siab ntawm kev tsim khoom automation, nws tuaj yeem txo qis kev siv zog ntawm cov neeg ua haujlwm.

Khoom Specification

Qauv	Chav tsev	HWM 110	MHBM 110A	MHBM 110B	HWM 130
Mus ncig
X Travel (Standard)	mm	2500	2500	2500	2000
X Travel (Yeem)	mm			3000/3500	2500/3000/3500
Y Travel (Standard)	mm	1800	1800	2200	2200
Y Travel (yeem)	mm				2600
Z ncig teb chaws (Standard)	mm	1500	1500	1500/2000 (Tshooj)	1500/2000 (Tshooj)
W Travel (Standard)	mm	400	550	550	700
Spindle
Spindle Center rau Table Surface	Mm	0~1800	0~1800	0~2200	0~2200
Spindle Nose rau Table Center	Mm	100~2000	150~2200	150~2200	-40~2160
Spindle dia.	mm	110	110	110	130
Spindle Taper		ISO 50	ISO 50	ISO 50	ISO 50
Spindle Speed (Standard)	rpm / min	35~3500	35~3500	35~3500	35~3000
Spindle Speed Shift		2 Hloov	2 Hloov	2 Hloov	2 Hloov
Txoj Kev Tsav Tsheb		Gearbox	Gearbox	Gearbox	Gearbox
Lub rooj ua haujlwm
Worktable Size (Yeem)	mm	1250×1250		1400×1600	1400×1600 (1600×1800)
Indexing kaum	deg	1 degree (Std.) 0.001 degree (opt.)	1 degree (Std.) 0.001 degree (opt.)	1 degree (Std.) 0.001 degree (opt.)	1 degree (Std.) 0.001 degree (Opt
Benchmark qhov Dia.	mm	60H7	60H7	140H7	Φ140H7
Max. Loading on Table	KG	5000	6000	8000	8000/10000
T-Qhov	mm	22H7×150×7	22H7×150×7	24H7×200×7	24H7×200×7
Indexing raug	sec	15 degree	15 degree	15 degree	15 degree
Repeated Positioning Accuracy	sec	4"	4"	4"	4"
Qhov tseeb encoder	sec	±5"	±5"	±5"	±5"
Txoj Kev Tsav Tsheb
XYZ axis		Ncaj qha	Ncaj qha	Ncaj qha	Ncaj qha
W Axis		Siv hom	Siv hom	Siv hom	Siv hom
Y Axis Counterweight		Tshuav thaiv	Tshuav thaiv	Hydraulic	Hydraulic
Pub ceev
X / Y / Z / W txiav pub ceev	m/min	10/10/10/6	10/10/10/6	10/10/10/6	10/10/10/5
X/Y/Z/W Rapid Feed Speed	m/min	10/10/10/8	10/10/10/8	10/10/10/8	10/10/10/8
Axial Tsav
X Axis Ballscrew	mm	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3
Y Axis Ballscrew	mm	Φ63×P10×C3	Φ63×P10×C3	Φ63×P10×C3	Φ63×P10×C3
Z Axis Ballscrew	mm	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3
W Axis Ballscrew	mm	Φ40×P5×C3	Φ40×P5×C3	Φ40×P5×C3	Φ40×P5×C3
ATC/Tool Magazine (Yeem)
Cov cuab yeej muaj peev xwm		40	40	40	60
Txoj kev xaiv cuab yeej		Tus nqi tsis txaus	Tus nqi tsis txaus	Tus nqi tsis txaus	Tus nqi tsis txaus
Tool Hloov Hom		Hom caj npab	Hom caj npab	Hom caj npab	Hom caj npab
Tool Shank Hom		BT/CAT/DIN #50	BT/CAT/DIN #50	BT/CAT/DIN #50	BT/CAT/DIN #50
Max. Tool Qhov hnyav	KG	25	25	25	25
Max. Tool Length	mm	500	500	500	500
Max. Tool Dia. (No.Adjacent)	mm	125/250	125/250	125/250	Φ125/250
Spindle & Tsav
Spindle Tsav	KW	PAB 15/18.5	PAB 15/18.5	PAB 15/18.5	PAB 22/30
Spindle Max. Torque	Nm	787/965	787/965	787/965	3002/4093
Qhov tseeb
Positioning raug	mm	±0.010	±0.010	±0.010	±0.010
Repeated Positioning Accuracy	mm	±0.005	±0.005	±0.005	±0.005
Lwm tus
Huab cua thov	kgf / cm²	6	6	6	6
Thov lub zog	KVA	45	45	55	85
Dej Tank Capacity	L	315	315	315	315
Hneev taw
Ntev	mm	5430	5430	5970	7970
Dav	mm	6450	6450	6080	6080
Qhov siab	mm	4590	4590	4990	4790
Qhov hnyav	KG	33000	33500	34000	40000

Qauv	Chav tsev	MHBM 110B	HWM 130	MHBM130A/5	MHBM130B/6
Mus ncig
X Travel (Standard)	mm	2500	2000	3500	4500
X Travel (Yeem)	mm	3000/3500	2500/3000/3500	4500/5500	5500
Y Travel (Standard)	mm	2200	2200	2600	3500
Y Travel (yeem)	mm		2600	3500
Z ncig teb chaws (Standard)	mm	1500/2000 (Tshooj)	1500/2000 (Tshooj)	1500/2000 (Tshooj)	2000/2500 (Opt.)
W Travel (Standard)	mm	550	700	700	700
Spindle
Spindle Center rau Table Surface	Mm	0~2200	0~2200	0~2600	0~3500
Spindle Nose rau Table Center	Mm	150~2200	-40~2160	100~2300	200~2900
Spindle dia.	mm	110	130	130	130
Spindle Taper		ISO 50	ISO 50	ISO 50	ISO 50
Spindle Speed (Standard)	rpm / min	35~3500	35~3000	35~3000	35~3000
Spindle Speed Shift		2 Hloov	2 Hloov	2 Hloov	2 Hloov
Txoj Kev Tsav Tsheb		Gearbox	Gearbox	Gearbox	Gearbox
Lub rooj ua haujlwm
Worktable Size (Yeem)	mm	1400×1600	1400×1600 (1600×1800)	1800×2200 (2500×2500)	2500×2500
Indexing kaum	deg	1 degree (Std.) 0.001 degree (opt.)	1 degree (Std.) 0.001 degree (Opt	1 degree (Std.) 0.001 degree (Opt	1 degree (Std.) 0.001 degree (Opt
Benchmark qhov Dia.	mm	140H7	Φ140H7	330H7	330H7
Max. Loading on Table	KG	8000	8000/10000	15000/20000	20000/25000
T-Qhov	mm	24H7×200×7	24H7×200×7	24H7×150×11	24H7×150×15
Indexing raug	sec	15 degree	15 degree	15 degree	15 degree
Repeated Positioning Accuracy	sec	4"	4"	4"	4"
Qhov tseeb encoder	sec	±5"	±5"	±5"	±5"
Txoj Kev Tsav Tsheb
XYZ axis		Ncaj qha	Ncaj qha	Ncaj qha	Ncaj qha
W Axis		Siv hom	Siv hom	Siv hom	Siv hom
Y Axis Counterweight		Hydraulic	Hydraulic	Hydraulic	Hydraulic
Pub ceev
X / Y / Z / W txiav pub ceev	m/min	10/10/10/6	10/10/10/5	10/10/10/5	10/10/10/5
X/Y/Z/W Rapid Feed Speed	m/min	10/10/10/8	10/10/10/8	10/10/10/8	10/10/10/8
Axial Tsav
X Axis Ballscrew	mm	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3
Y Axis Ballscrew	mm	Φ63×P10×C3	Φ63×P10×C3	Φ63×P10×C3	Φ63×P10×C3
Z Axis Ballscrew	mm	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3	Φ80×P10×C3
W Axis Ballscrew	mm	Φ40×P5×C3	Φ40×P5×C3	Φ40×P5×C3	Φ40×P5×C3
ATC/Tool Magazine (Yeem)
Cov cuab yeej muaj peev xwm		40	60	60	60
Txoj kev xaiv cuab yeej		Tus nqi tsis txaus	Tus nqi tsis txaus	Tus nqi tsis txaus	Tus nqi tsis txaus
Tool Hloov Hom		Hom caj npab	Hom caj npab	Hom caj npab	Hom caj npab
Tool Shank Hom		BT/CAT/DIN #50	BT/CAT/DIN #50	BT/CAT/DIN #50	BT/CAT/DIN #50
Max. Tool Qhov hnyav	KG	25	25	25	25
Max. Tool Length	mm	500	500	500	500
Max. Tool Dia. (No.Adjacent)	mm	125/250	Φ125/250	Φ125/250	Φ125/250
Spindle & Tsav
Spindle Tsav	KW	PAB 15/18.5	PAB 22/30	PAB 22/30	PAB 22/30
Spindle Max. Torque	Nm	787/965	3002/4093	3002/4093	3002/4093
Qhov tseeb

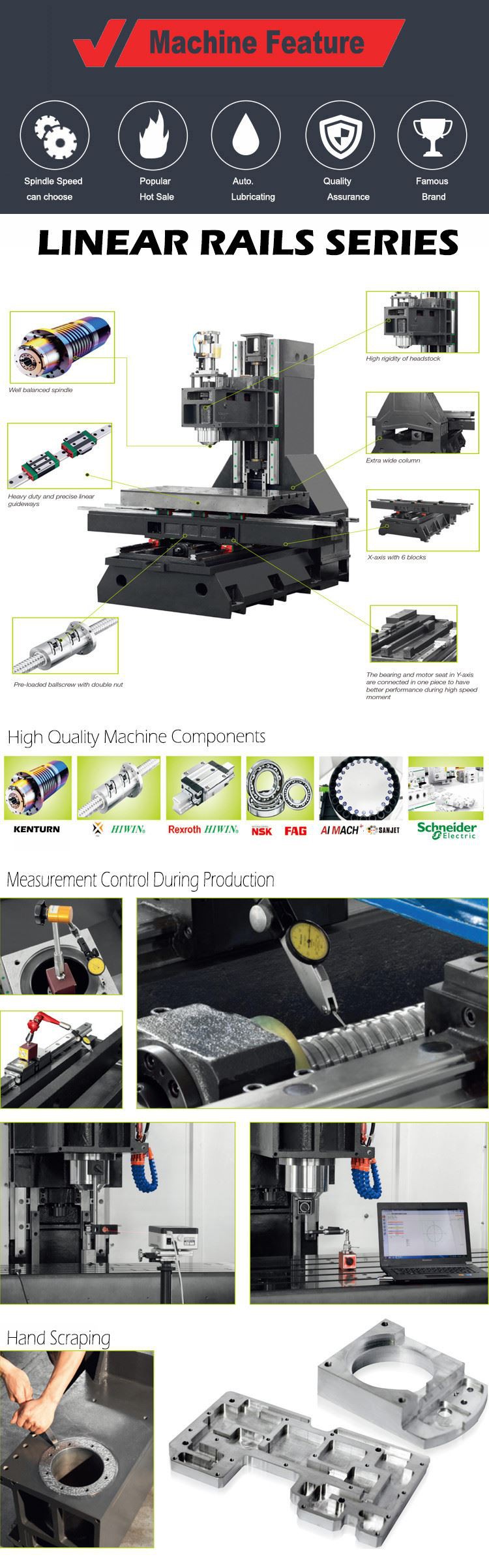

14 VMC Linear Feature

Standard Configuration

● Vertical Hom

● BT40 8000rpm Spindle

● Spindle Roj Chiller

● Spindle coolant nozzle system

● XYZ Axis Linear rails

● XYZ Axis Servo Tsav

● Tag Nrho Txhuam Txhuam Txhuam Hniav

● Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob

● Cov ntaub ntawv hloov pauv interface

● Tsis siv neeg lubrication system

● Txiav Coolant system

● LED ua haujlwm teeb

● Xaus ntawm qhov kev pab cuam lub teeb

● Portable Electronic handwheel (MPG)

● Leveling bolts thiab blocks

● Txiav cua tshuab tshuab

● CNC Phau Ntawv Qhia & Kev Siv Ua Haujlwm

● Chip flush coolant system

● Dej Tank

● Lub qhov rooj ruaj ntseg

● Transformer (raws li qhov hluav taws xob hauv zos)

● Mitsubishi CNC Controller

Yeem Configuration

○BT/ISO/HSK-A63 10000~ 30000rpm Spindle

○Coolant Los ntawm Spindle (CTS)

○ATC/Tool Magazine system

○Hluav taws xob txee AC

○Ntsia hlau hom Chip Conveyor system

○Chain hom Chip Conveyor system

○Lub 4th axis teb lub rooj

○5th axis Tilting & Rotary rooj

○Linear Scale

○Auto.Tool Measuring system

○Auto.Workpiece Ntsuas qhov system

○CE Mark

○Tshuab Kem Heighten

○LNC / Syntec CNC maub los

○FANUC / Siemens / Heidenhain CNC maub los

○Lwm Cov Kev Xaiv raws li tau thov
