Portal VMC

Kev piav qhia

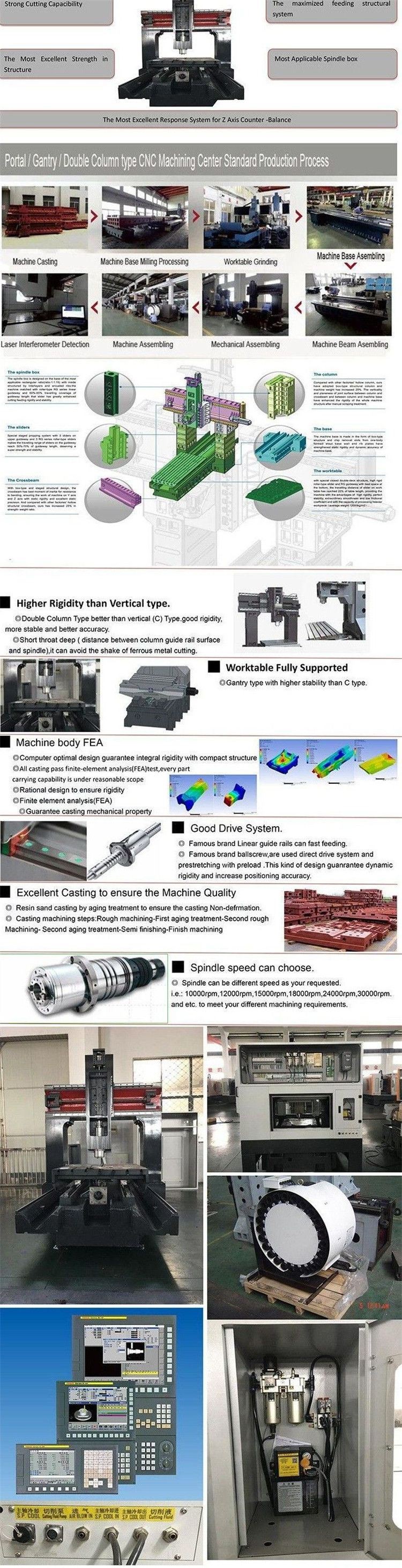

Portal VMC, tseem hu ua ntsug milling chaw, yog CNC tshuab rau machining qhov chaw ntawm ntau lub hom phiaj thiab hom. Cov cuab yeej siv lub rooj gantry-type ruaj khov dua los txo qis kev co thaum lub sijhawm ua haujlwm, thiab lub rooj yog nruab nrog cov khoom siv los tuav cov khoom. Nws cov qauv fuselage tau raug tsim los ua kom muaj zog thiab muaj zog thauj khoom muaj peev xwm kom cov cuab yeej ua haujlwm ruaj khov rau lub sijhawm ntev.

Ua tsaug rau kev tswj hwm lub khoos phis tawj sib xyaw ua ke, lub cuab yeej ua kom siv lub tshuab hluav taws xob, siab ntim, rov ua dua tshiab nrog cov ntsuas tsis tau. Nws tseem yog nruab nrog siab precision hard guide thiab lead ntswj los tsav lub cutter kom txiav, uas tuaj yeem muab cov khoom tiav tsis tshua muaj siab qhov tseeb. Portal VMC yog qhov tsim nyog rau kev tsim cov khoom siv hlau thiab qhov chaw ntawm ntau yam duab, thiab nws tuaj yeem siv rau ntau yam kev lag luam xws li aerospace kev lag luam, lub teeb kev lag luam, khoom lag luam, kev lag luam pwm thiab lwm yam.

Standard Configuration:

* Peb-axis txais Taiwan PMI lossis HIWIN C3 pob ntsia hlau

* Peb-axis txais yuav Taiwan PMI lossis HIWIN H-theem lossis P-theem linear rail

* Peb-axis txais Nyiv NSK P4 bearings

* X axis lub cev tiv thaiv kab mob, Y axis hlau ntaub thaiv npog

* Coupling (Taiwan-ua)

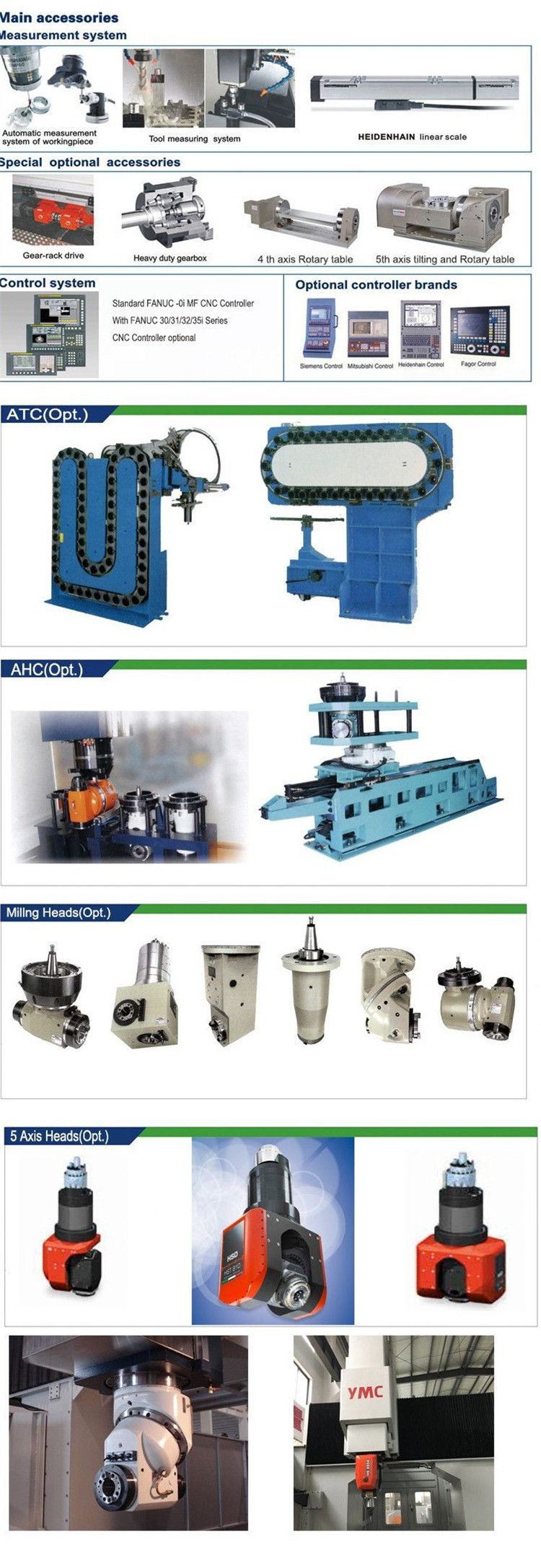

Yeem Configuration:

* BT-24 cuab yeej caj npab hom ATC (DEX/OKADA/AIMACH/SANJET)

* BT40-150/12000rpm direct-connected spindle

* 150-HSKA63-15000rpm direct-connected spindle

* 5th axis tilting thiab cov lus teb los yog 5th axis bi-rotary milling taub hau
