Gantry Cnc Machining Center

gantry cnc machining chaw
24 T ATC OptionalFANUC/SIEMENS/MITUBISHI/SYNTEC CONTROLLER

Xa kev nug

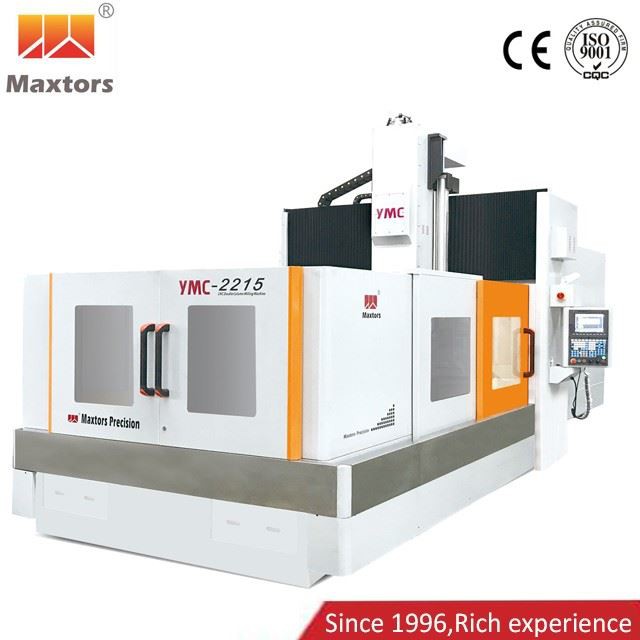

gantry cnc machining chaw YMC-2215

Qhov sib txawv loj cnc milling tshuab thiab cnc machining chaw muaj

X Axis Taug kev los ntawm 300mm ~ 20000mm

Tiv tauj peb ncaj qha los muab cov kev daws teeb meem zoo tshaj rau koj

Yam khoom	Chav tsev	YMC-2215
Lub rooj ua haujlwm
Worktable Size	mm	2200×1480
Max.Loading ntawm Rooj	KG	5000
Mus ncig
X axis	mm	2200
Y Axis	mm	1500
Z axis	mm	800
Spindle Nose rau Rooj	mm	150-950
Qhov nrug nruab nrab ntawm Kem	mm	1580
Pub System
XYZ Rapid Feed	m/min	15/15/7.5
Txiav Feed	m/min	6
Tool Magazine (OPT.)
Muaj peev xwm		BT50/24
Max.Tool	mm	Φ125/300
Max.Tool Nyhav	KG	18
Qhov tseeb
Qhov chaw	mm	±0.008/300
Re-Positioning	mm	±0.005/300
Spindle
Max. Ceev	rpm ua	6000
Taper		BT50
Lub cev muaj zog	KW	15/18.5
Lwm tus
Huab cua yuav tsum	kg/c ㎡	Ntau dua lossis sib npaug 6
Cua Presuure Flux Rate	m³/min	Ntau dua lossis sib npaug rau 0.5
Hneev taw	mm	6000×2580
Qhov siab	mm	3200
Qhov hnyav	KG	18000
CNC maub los		FANUC-0iMF

Peb Lub Zog

* Ntau tshaj 25 xyoo kev tsim khoom hauv CNC Milling tshuab thiab cnc Center Tshuab.

* Kev ua tau zoo yog lub neej ntawm peb lub tuam txhab, thiab peb muab koj qhov zoo tshaj plaws tus nqi siab ntxiv tshuab.

* Export CNC tshuab cuab yeej rau thoob plaws lub ntiaj teb no, tshwj xeeb tshaj yog rau Nyab Laj, Russia, Europe thiab Middle East lub teb chaws.

* Kev pabcuam neeg siv khoom yog lub zog uas tsav peb lub tuam txhab mus tom ntej.

8-1

8-2

3 About Us

Peb Pab Pawg:

Peb yog ib pab neeg uas muaj kev paub dhau los thiab cov kws tshaj lij uas yog cov kws tshaj lij hauv kev ua haujlwm precision los ntawm cov txheej txheem tshawb fawb. Cov kws tshaj lij cov txuj ci sib sau ua ke pab pawg muaj zog thiab muaj tswv yim ntawm kev tsim, kev tshawb fawb thiab kev tsim kho, uas tsim peb cov khoom siv zog thiab kev sib tw. Thiab peb lub tuam txhab tab tom txhim kho sai thiab muab kev pabcuam tshwj xeeb rau txhua tus neeg siv khoom.

4 Exhibition and Customers
