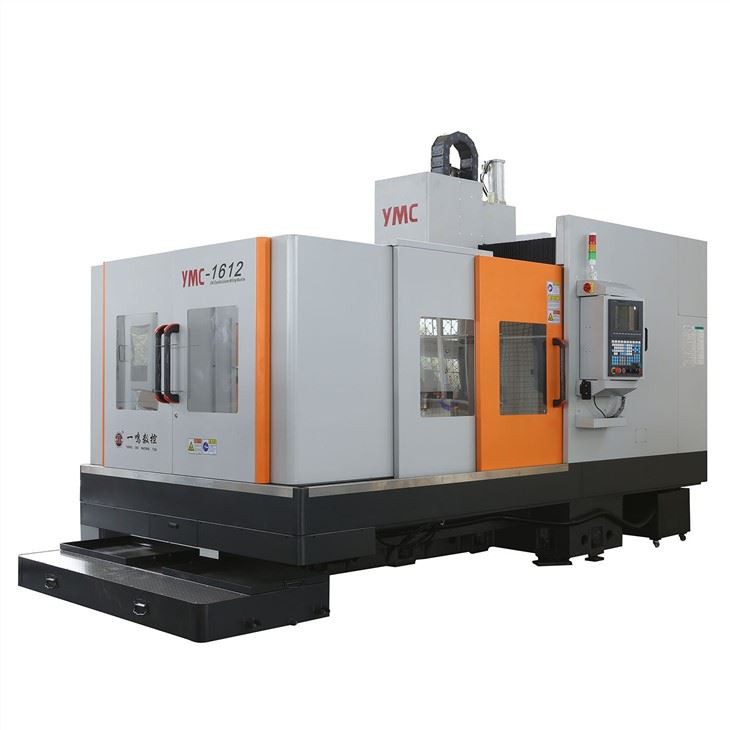

CNC Tshuab Center Rau Hlau Yam Kho vajtse ua

Qhov zoo ntawm peb cov high-precision CNC lathes, CNC milling tshuab, thiab CNC tshuab cuab yeej rhiav tau mus txog lub thoob ntiaj teb ua theem ntawm cov khoom zoo sib xws, thiab muaj zoo heev durability thiab kev cia siab rau. Peb zoo siab txais tos cov neeg siv khoom thiab cov phooj ywg tuaj xyuas peb lub Hoobkas! Txij li thaum nws tsim, lub tuam txhab tau txuas nrog qhov tseem ceeb rau kev kawm thiab kev cob qhia, thiab ruaj khov tsim lub tswv yim ntawm kev vam khom cov txuj ci rau kev txhim kho.



Vertical Machining Center cov yam ntxwv tseem ceeb ntawm kev ua haujlwm:

1.Lub fuselage thiab lub ntsiab Cheebtsam yog siab zog cam khwb cia hlau, microstructure stability, xyuas kom meej stability ntawm lub tshuab cuab yeej siv mus ntev.

2.Cov kab hauv qab ntawm A hom choj hom qauv, ua ke nrog lub thawv loj hauv paus, zoo heev txo cov kev co ntawm lub tshuab ntawm hnyav txiav.

3.Qhov ua ntej nro precision pob ntsia hlau tsav

4.Qhov kev kub ceev, siab precision, siab rigidity spindle chav tsev

5.Kev tsim cov roj-dej sib cais

6.Qhov sib cuam tshuam tsis siv neeg lubrication

7.Automatic scraping riam system



Specification

Yam khoom	Chav tsev	YMC-1612
Lub rooj ua haujlwm
Worktable Size	mm	1600×1200
Max.Loading ntawm Rooj	KG	2000
Mus ncig
X Axis Travel	mm	1600
Y Axis Travel	mm	1200
Z Axis Ncig Tebchaws	mm	550
Spindle Nose rau Rooj	mm	150-700
Qhov nrug nruab nrab ntawm Kem	mm	1380
Pub System
XYZ Rapid Feed	m/min	15/15/7.5
Txiav Feed	m/min	6
ATC/Tool Magazine (Rau Center)
Tool Capacity		BT40/24
Max.Tool Dia./Length	mm	Φ80/260
Tool Hloov Txoj Kev		Pneumatic
Max.Tool Nyhav	KG	8
Qhov tseeb
Positioning raug	mm	±0.008/300
Re-Positioning raug	mm	±0.005/300
Spindle
Spindle Ceev	rpm ua	10000
Spindle Taper		BT40
Spindle Tsav	KW	7.5/11
Lwm tus
Huab cua yuav tsum	kg/c ㎡	Ntau dua lossis sib npaug 6
Cua Presuure Flux Rate	m³/min	Ntau dua lossis sib npaug rau 0.5
Hneev taw	mm	4300×2400
Tshuab Qhov siab	mm	3000
Tshuab hnyav	KG	10500
CNC maub los		FANUC-0iMF

Peb Pab Pawg:

Peb yog ib pab neeg uas muaj kev paub dhau los thiab cov kws tshaj lij uas yog cov kws tshaj lij hauv kev ua haujlwm precision los ntawm cov txheej txheem tshawb fawb. Cov kws tshaj lij cov txuj ci sib sau ua ke pab pawg muaj zog thiab muaj tswv yim ntawm kev tsim, kev tshawb fawb thiab kev tsim kho, uas tsim peb cov khoom siv zog thiab kev sib tw. Thiab peb lub tuam txhab tab tom txhim kho sai thiab muab kev pabcuam tshwj xeeb rau txhua tus neeg siv khoom.



Xaiv tau accessories

- Siemens 808D ADAVANCE

- Fanuc 0i MF

- Chip conveyor

- Spindle siv hom 10000 rpm

- Spindle Direct 12000 rpm

- Spindle taper BT50 Ceev 6000 rpm

- 4 axes 250mm/320mm

- 16pcs Armless Taiwan OKADA Tool Changer

- 24 caj npab hom Taiwan OKADA cuab yeej magazine



Packing thiab shipping

Rau cov tshuab: feem ntau yog los ntawm hiav txwv;

Rau cov ntaub ntawv: los ntawm thoob ntiaj teb courier, eg. DHL, TNT lossis EMS.

Cov txheej txheem ntim: fumigation-dawb plywood ntim steel puag
